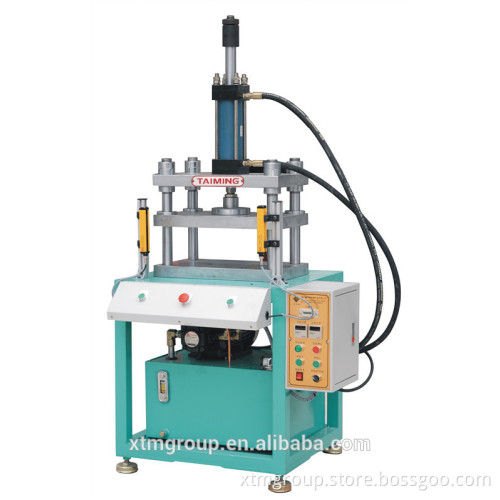

XTM105H series protective film hydraulic cutting machine
Scope of application: (pneumatic hydraulic machine, precise four column hydraulic press, protection film cutting machine, adhesive tape cutting machine, leather punching and cutting machine pressure indentation machine)
The series hydraulic machine is widely used in all kinds of mobile phone, digital camera, laptop LCD screen protective film cutting, all kinds of stickers, cut half off; punching all kinds of mobile phone or remote silica gel, plastic buttons, plastic product whole slit; suitable for use without a simple guiding type cutting die is the majority of mobile phone industry, computer industry line of cameras to the required equipment.
Product features:
1 this series of hydraulic machine to 1-14MPA liquid pressure as the power source, external three-phase 50HZ AC220 or three-phase 60HZ AC380V AC power supply. Total power consumption is not more than 3.7KW. (also can use the customer demand for single-phase AC220 civilian power)
2 this series of equipment to liquid as the medium to transfer energy, high efficiency, the average time of the crop cycle less than 0.6 seconds.
3 equipment standby noise is not more than 80 dB (selection of single phase motor, standby noise of 85 dB)
4. Adopts four-column.three-plate structure, the movable plate vertical accuracy by four precise guide set of control, an arbitrary point of the work surface and the working surface of parallel precision achieves 0.08mm below.
5 adjustable positioning cylinder, high precision point positioning, accuracy can reach below 0.01mm.100% to ensure the cutting depth
. has the function of automatic counting, manual and semi-automatic two control mode, manual can be pressing die stopped at arbitrary distance range, equipped with emergency recovery button, equipped with infrared hand device
7 maximum cutting area of up to 580MM*350MM (equivalent to 21 inch LCD)
8 the main axis of the decline rate is 88MM/S,
9 pressure, cutting travel, under pressure time, close to the height of customers can adjust their own, easy to operate;
10. Hydraulic system built at the bottom of the tank, neat appearance, stable. Under the working platform is equipped with casters and foot cup, easy to move, the largest aircraft weight does not exceed 400KG.
11 this series of hydraulic machinery output range has 10tf. 5tf. optional. (1tf=1000kgf=9.8KN), can also be customized according to customer demand.
Product name:
Oil pressure cutting machine, precision hydraulic punching machine, mobile phone protective film, PET film, double-sided adhesive, pressure sensitive adhesive and other cutting machine;
Scope of application:
The series hydraulic machine is widely used in all kinds of mobile phone, digital camera, laptop LCD screen protective film cutting; all kinds of stickers, cut half off; suitable for use without a simple guiding type cutting mould, the majority of mobile phone industry, computer industry, camera industry required equipment.
Product features:
1. The series hydraulic machine to 1-14MPA liquid pressure as the power source, external three-phase AC380V 50Hz or AC220 60Hz three-phase AC power supply, the total power consumption does not exceed 3.7KW (can also according to customer requirements using commercial single-phase AC220 power supply);
2. Adopts four-column.three-plate structure and activity in the vertical accuracy by four precise guide set of control, an arbitrary point of the work surface and the working surface of parallel precision achieves 0.08mm below;
3 adjustable positioning cylinder, high precision positioning accuracy can reach the bottom dead center, below 0.01mm, 100% guarantee cutting depth;
4 standard machine cutting area of 520MM*350MM (equivalent to 21 inch LCD), can also be customized according to customer requirements;
5 pressure, cutting travel, under pressure time, close to the height of customers can adjust their own, easy to operate;
6 this series of hydraulic machinery output range is 3tf/5tf/10tf... 50tf optional (1tf=1000kgf=9.8kn), can also be customized according to customer requirements;
