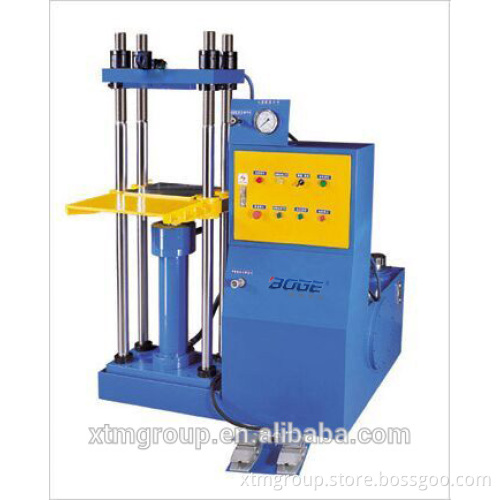

Powder molding hydraulic press
Powder forming hydraulic machine, also known as hard alloy powder molding machine, multipole magnetic powder molding machine, magnetic tile powder forming machine is a new type of hydraulic equipment, which is widely used in all kinds of metal powder, magnetic powder, ceramic powder, hard alloy products, drugs and other pressing into type. At present, powder molding hydraulic machine processing enterprises in the use of powder products press, because those restructuring type equipment and punch can not meet the processing requirements of high precision, complex shape of powder products, resulting in the slow development of China's powder products processing industry and powder metallurgy industry, according to the relevant data show, in some developed countries such as the United States, Japan, Europe and other, application of the powder products in auto parts has reached 37%, and China's only 10% differ very far. Especially for high precision, complex shape of the powder products market demand has been a strong expansion of the trend.
By Xin Tai Ming production of powder forming hydraulic machine is mainly used to structure based powder metallurgy, machinery parts of the production, the hydraulic press with independent hydraulic and electrical system, with floating pressing, effectively control the density of molding products, protection of demoulding and general stripping two parting ways can choose, electric control PLC programmable controller, the hydraulic system adopts advanced cartridge valve integrated to ensure hydraulic machine continuous, frequent stable work. Oil cooling device. The use of button centralized control, while the mechanical limit device, thereby ensuring the consistency of products.
Product features:
1 this series of hydraulic machine tool with 2-20MPA liquid pressure as the power source, external connection of three-phase 50HZ AC220 or three-phase 60HZ AC380V AC power source. Total power consumption 3.7KW.
2 this series of equipment to liquid as the medium to transfer energy, high efficiency, low noise.
3 equipment standby noise is not more than 85 dB
4. Adopts four-column.three-plate structure, movable plate vertical accuracy by four precise guide set of control, at any point in the work surface and the working surface of parallel precision achieves 0.08mm below. To ensure the accuracy of the vertical.
5, the use of the cylinder to feed, out of the material, accurate positioning, high stability.
6. Has the function of automatic counting, breaking up and fully automatic control mode, manual can be pressing die stopped at arbitrary distance range, equipped with emergency recovery button, the installation of infrared hand device
7 pressure, close height, feed stroke, customers can adjust their own, easy to operate;
8 hydraulic system built in the bottom of the tank, the appearance of clean, stable.
9 the rated output of the equipment is 3-50tf (1tf=1000kgf=9.8KN), can also be customized according to customer demand.
