Four Pillars Hydraulic Press Machine type High Demand Metal Products Manufacturing Machine

Specifications professional machine manufacturers;

Optimized design of hydraulic system;

Good pressing performance;

structural optimization

Four Pillars Hydraulic Press Machine type High Demand Metal Products Manufacturing Machine     Product Description

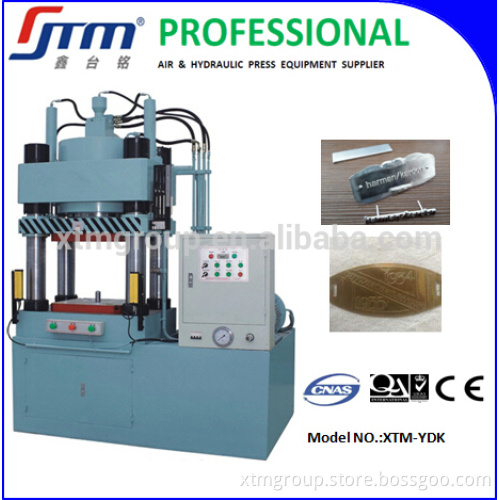

XTM-YDK series Press Machine is a new type hydraulic press machine used in metal products;
The machine is characterized by professional machine manufacturers;
Optimized design of hydraulic system;Good pressing performance;
Structural optimization sensitive action, safe and reliably operation.  Operated by double-button switch.

 Selector switch modes of operation: jog (setup) and run (cycle).

 Flexibly adjustable pressure and stroke.

 Machine dwell time and stroke could be set specially as per processing requirements.

 Idea of doubled SLC (Security Light Curtain) makes it safe of operation.

 Emergencey switches for safety stop;

 Protective fence and the safety interlock can be added to upgrade the secure.

 Oil seals  adopts  ring-oriented technology, good performance of oil anti-leakage.



     Highlight of YDK Series Hydraulic Press Machine
      As a shenzhen professional machine manufacturer with more than 10-year experience in hydraulic press manufacture, we support solid quality hydraulic presses all over the world.

     1.YDK series Hydraulic Press Machine is a new type of rapid upper positioning lower pressing  oil press. It adopts four-column structure with high guiding  precision. The machine is characterized by sensitive action, safe and reliably operation.  All pipes, flange and joint with vibrations proof and leakage proof design and setting .

     2.As YDK Series adopt cylinder upper positioning and lower pressing working type, the working table remains stable, it can avoid work-piece misalignment due to work-piece movement when cylinder is in lower position for upper pressing so as to ensure pressing precision and reduce the rate of defective products.

     3. Two-stage speed control with sliding block, no load high and low speed profiling drawing and high speed back stroke.
     Detailed pictures of hydraulic press YDK used in metal products



stroke limit switch of the hydraulic press:


hydraulic power unit of the hydraulic press:

working table with T slot of hydraulic press:


Technical Parameter

Model		Unit	YDK-100	YDK-200	YDK-300	YDK-500	YDK-600
Cylinder nominal force		KN	1000	2000	3000	5000	6000
Max. hydraulic pressure		MPa	19	18	22	22	25
Max. stroke of ram		mm	200	200	200	200	200
shut height	Max.	mm	420	420	420	450	450
	Min.		220	220	220	250	250
dimension of table	L-R	mm	450	500	590	650	700
	F-B		500	550	650	700	750
Speed of slide	moving up	mm/s	150	150	150	150	150
	return		120	120	120	150	150
Overall size	L-R	mm	1470	1590	1715	1960	2030
	F-B		1150	1150	1210	1210	1400
	H		2210	2260	2350	2670	2780
Power of motor		KW	7.5	7.5	11	15	15
Approx. total weight		T	2.5	3.5	4	6	8.5

Scope of Application  Professional machine manufacture, machines with high quality and competitive price.  1. YDK Series Hydraulic Press Machine is designed for pressed precise watchcase, watchband,
dishware, spectacle frame, jewelry, medal, picture frame, circuit board and other products.

 2. YDK Series Press Machine is applicable for other finished products, which are pressed through
mould such as hard alloy product and grinding wheel products etc.
3. YDK series is especially suitable for embossing, laminating and other industries.
scope of application of hydraulic press used in metal products:



X.T.M Advantage Shenzhen Xintaiming Machinery Equipment Co.,Ltd


   Shenzhen Xintaiming Machinery Equipment Co.,Ltd ,shenzhen professional machine manufacturer, the leading company of hydraulic and hydraulic press machine in China .       We have sold hydraulic press machines to Germany, Hungary, Russia, India, Indonesia, Thailand,   Vietnam,  USA, Mexico,Brazil,Italy, Saudi Arabia, Bahrain, South Africa, Australia, Iran and so on more
than 20 countries .



        Key aspects of the X.T.M success are:  Continuous investment in research & development (more than 7% of profits).

 First class quality of raw materials .

Specialized workforce (more than 150 employees),

Wide market service network throughout the country   Workforce & Facility




7500sq meter manufacturing facility, moe than 150 full time employees, X.T.M is fully capable of
handling the growing demand worldwide, and offering excellent technology, solid qualit at highly competitive prices.
