High Quality Hydraulic Sheet Metal Perforating Machine With CE Approved

Specifications sheet metal perforating machine

1.High parallel precision,vertical accuracy

2. fast speed, slow pressing

3.self-lubricating

High Quality Hydraulic Sheet Metal Perforating Machine With CE Approved     Product Description      XTM-YDK series hydraulic press machine is a new type hydraulic press machine for metal machinery manufacture, expecially suitable for sheet metal perforating processing. The machine is characterized by sensitive action, safe and reliably operation.

Product Features

   Operated by double-button switch.

 Selector switch modes of operation: jog (setup) and run (cycle).

 Flexibly adjustable pressure and stroke.

 Machine dwell time and stroke could be set specially as per processing requirements.

 Idea of doubled SLC (Security Light Curtain) makes it safe of operation.

 Emergencey switches for safety stop.

 Protective fence and the safety interlock can be added to upgrade the secure.

 Oil seals  adopts  ring-oriented technology, good performance of oil anti-leakage.

Specifications



Model		Unit	YDK-100	YDK-200	YDK-300	YDK-500	YDK-600
Cylinder nominal force		KN	1000	2000	3000	5000	6000
Max. hydraulic pressure		MPa	19	18	22	22	25
Max. stroke of ram		mm	200	200	200	200	200
shut height	Max.	mm	420	420	420	450	450
	Min.		220	220	220	250	250
dimension of table	L-R	mm	450	500	590	650	700
	F-B		500	550	650	700	750
Speed of slide	moving up	mm/s	150	150	150	150	150
	return		120	120	120	150	150
Overall size	L-R	mm	1470	1590	1715	1960	2030
	F-B		1150	1150	1210	1210	1400
	H		2210	2260	2350	2670	2780
Power of motor		KW	7.5	7.5	11	15	15
Approx. total weight		T	2.5	3.5	4	6	8.5



Highlight of Hydraulic Press Machine for Metal Stamping


     As a shenzhen professional machine manufacturer with more than 10-year experience in hydraulic press manufacture, we support solid quality hydraulic presses all over the world.

     1.YDK series Hydraulic Press Machine for metal metal perforating is a new type of rapid upper positioning lower pressing oil press. It adopts four-column structure with high guiding  precision. The machine is characterized by sensitive action, safe and reliably operation.  All pipes, flange and joint with vibrations proof and leakage proof design and setting.

     2.As YDK Series hydraulic press dopts cylinder upper positioning and lower pressing working type, the working table remains stable, it can avoid work-piece misalignment due to work-piece movement when cylinder is in lower position for upper pressing so as to ensure pressing precision and reduce the rate of defective products.

     3. Two-stage speed control with sliding block, no load high and low speed profiling drawing and high speed back stroke.

Scope of Application

       Professional machine manufacture, machines with high quality and competitive price. The hydraulic press is mainly used in sheet metal perforating industry.

    Except for metal stamping, the machine can also used in the below application scope:

1. YDK Series Hydraulic Press Machine is designed for pressed precise watchcase, watchband, dishware, spectacle frame, jewelry, medal, picture frame, circuit board and other products.

 2. YDK Series Press Machine is applicable for other finished products, which are pressed through mould such as hard alloy product and grinding wheel products etc .

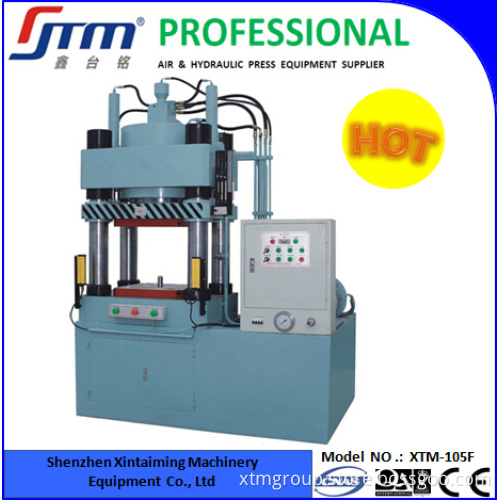

Detailed Pictures of Product

          detailed pictures of the metal stamping machine:




Packaging & Shipping                                     Company Information Shenzhen Xintaiming Machinery Equipment Co., Ltd  is specialized in the designing and making CNC Servo press series, CNC C-type hydraulic machine, IMD/IML 3D punching machine, IMD/IML hot press molding machine, Hydraulic cutting /punching/molding/bending/hot press machine, XTM series four-column single-acting upper displacement oil press and so on.   Our products have been exported to Germany, Hungary, Russia, India, Indonesia, Thailand, Vietnam, the United States, Mexico, Brazil Italy, Saudi Arabia, Bahrain, South Africa, Australia, Iran and so on more than 30 countries  and regions.

Company Overview



Warehouse & Workshop



Exhibitions



Customers' Visit

                     Why Choose us?   1.We manufacturesthe hydraulic and Pneumatic Presses machine and provides the overall service.    2. We master the latest hydraulic and control technologies and have 20 years of worldwide manufacturing expertise.      3. We have a body of engineers with years of experience      4. Presses can be customized to meet your specific needs and requirements.      5. A large-scale  factory.          Key aspects of the X.T.M success are:  Continuous investment in research & development (more than 7% of profits).

 First class quality of raw materials .

Specialized workforce (more than 150 employees),

Wide market service network throughout the country

Quality COntrol Measurement



1. We use the world-famous brand accessories like Mitsubishi, Schneider, Siemens, Yuken, Omron etc.  Before packing machine, we debug machine by letting the machine run for 12 hours.   2. Before packing machine, the machine will run one day for testing oil leakage, repeat error, and electrical
 parts performane. Meanwhile, there will be video giving to you (FAT video).    3. Any error(not man-made)happens within the period of guarantee, we offer the according parts for free.    4. we will offer overseas service if we(the Two Parties) can come to an overseas service agreement.
