CNC CNC or not and Hydraulic Press Machine type Precision Assembly Machine

Specifications CNC C type hydraulic assembly machine

1.Highly CNC control

2.for precision assembly

3.Payment term by T/T

4.ISO/CE approved

CNC CNC or not and Hydraulic Press Machine type Precision Assembly Machine
CNC assembly machine Features:

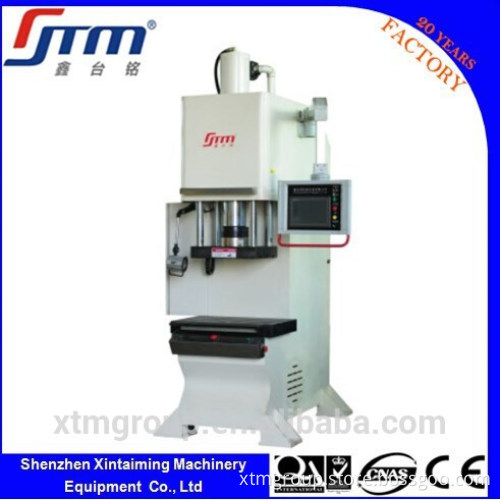

XTM-107S CNC hydraulic press mahcine is a new condition hydraulic press machine type assembly machine, with friendly human-computer interface, easy and safe to operate.


1.Drived by hydraulic pressure generated by motor, adopts advanced dual oil cylinder and hydraulic circuit, causes low heat while operates at a speed of more than 150mm per second;   2.Hydraulic pressure actuation of 1-14MPA, three-phase alternating-current supply, AC380V 50HZ or AC220 60 HZ, total consumptions of electricity of less than 3.7KW.   3.The frame adopts integrity welding technology with better regidity and stability of machine while wide convenient operation space;   4.Pressing force, stroke of cutting, dwell time, die height could be adjusted manually comply with pratical demand;   5.Intelligent functions: intellegent counter, force measurement monitor, intelligent temperature controler(Customized available),   6.Range of output force: 15ft-100ft.(Optionally).

 CNC assembly machine control functions:
                                  CNC Assembly Machine detailed picture:



Scope of Applicatioins of CNC assembly machine:

1. The machine is mainly used in assembly machinery.
2. With multi-purpose of press, the series hydraulic press could be comprehensively used in a variety of materials, punching, stamping, shaping, riveting, bending,shear, tension, various small parts of the press-fit assembly.
CNC assembly machine Technical Parameter: (Technical parameter can be customized according to your special need ):

Model			XTM107S-10	XTM107S-20	XTM107S-30	XTM107S-50
Nominal Force			10T	20T	30T	50T
MAx. Hydraulic Working Pressure			12.5MPa	11.1MPa	15Mpa	16MPa
Knock-out Force			1.9T	2.5T	3.7T	5T
Worktable Height			750mm	750mm	750mm	750mm
Max. Operational Height			400mm	500mm	500mm	500mm
Max. Stroke			300mm	300mm	300mm	300mm
Dimensions of the Table	L-R		500mm	600mm	600mm	600mm
	F-B		400mm	400mm	400mm	400mm
Speed of Slide	Descending Speed		≥ 150mm/s	≥140mm/s	≥180mm/s	≥180mm/s
	Pressing Speed		≥25mm/s	≥12mm/s	≥14mm/s	≥9mm/s
	Returning Speed		≥132mm/s	≥100mm/s	≥120mm/s	≥96mm/s
Overall Size of the Machine			650×720×1850(mm)	650×720×1900(mm)	650×720×1900(mm)	650×720×1900(mm)
Power of Motor			2.2KW	3.7KW	3.7KW	5.5KW
