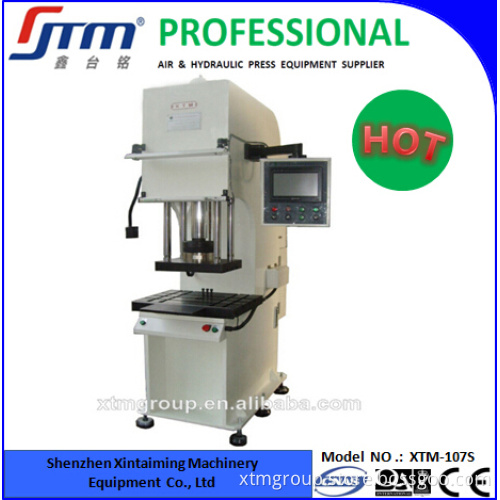

Top Quality Industrial Hydraulic Press Machine From Shenzhen Alibaba Manufacturers

Specifications Top Quality Industrial Hydraulic Press Machine:

1.Highly CNC Control;

2.C Frame Large Space;

3.ISO/CE;

4.20 Years Factory.

Top Quality Industrial Hydraulic Press Machine From Shenzhen Alibaba Manufacturers

Features:


1.Drived by hydraulic pressure generated by motor, adopts advanced dual oil cylinder and
hydraulic circuit, causes low heat while operates at a speed of more than 150mm per second;   2.Hydraulic pressure actuation of 1-14MPA, three-phase alternating-current supply, AC380V
50HZ or AC220 60 HZ, total consumptions of electricity of less than 3.7KW.   3.The frame adopts integrity welding technology with better regidity and stability of machine
while wide convenient operation space;   4.Pressing force, stroke of cutting, dwell time, die height could be adjusted manually comply
with pratical demand;   5.Intelligent functions: intellegent counter, force measurement monitor, intelligent temperature
controler(Customized available),   6.Range of output force: 5 ton-100 ton (Optionally).

Scope of Applicatioins:


1. The machine is widely used in laborotary, it is designed for lab use.

2.With multi-purpose of press, the series hydraulic press could be comprehensively used in
a variety of materials, punching, stamping, shaping, riveting, bending,shear, tension, various
small parts of the press-fit assembly.

Technical Parameter:

(Technical parameter can be customized according to your special need ):

Model			XTM107S-10	XTM107S-20	XTM107S-30	XTM107S-50
Nominal Force			10T	20T	30T	50T
MAx. Hydraulic Working Pressure			12.5MPa	11.1MPa	15Mpa	16MPa
Knock-out Force			1.9T	2.5T	3.7T	5T
Worktable Height			750mm	750mm	750mm	750mm
Max. Operational Height			400mm	500mm	500mm	500mm
Max. Stroke			300mm	300mm	300mm	300mm
Dimensions of the Table	L-R		500mm	600mm	600mm	600mm
	F-B		400mm	400mm	400mm	400mm
Speed of Slide	Descending Speed		≥ 150mm/s	≥140mm/s	≥180mm/s	≥180mm/s
	Pressing Speed		≥25mm/s	≥12mm/s	≥14mm/s	≥mm/s
	Returning Speed		≥132mm/s	≥100mm/s	≥120mm/s	≥96mm/s
Overall Size of the Machine			650×720×1850(mm)	650×720×1900(mm)	650×720×1900(mm)	650×720×1900(mm)
Power of Motor			2.2KW	3.7KW	3.7KW	5.5KW



More related Images:

                                              Shenzhen Xintaiming Machinery Equipment Co., Ltd, professional shenzhen alibaba
manufacturer of hydraulic and pneumatic presses.

About Us

   Shenzhen Xintaiming Machinery Equipment Co., Ltd is professional in the designing and making
all kinds of hydraulic and pneumatic presses.    1) Servo press series   2) CNC hydraulic machines    3) MD/IML 3D punching machine    4) IMD/IML hot press molding machine     5) High speed punching machine   6) Hydraulic stamping/embossing/cutting /drawing press machine and so on         Our products have been exported to Germany, Hungary, Russia, India, Indonesia, Thailand, Vietnam,
the United States, Italy, Saudi Arabia, South Africa, Australia, Iran and so on more than 30 countries
and regions.


Benefits and Advantages



Why Choose Us


        Key aspects of the X.T.M success are:  Continuous investment in research & development (more than 7% of profits).

 First class quality of raw materials.

Specialized workforce (more than 150 employees).

Wide market service network throughout the country.


7500sq meter manufacturing facility, moe than 150 full time employees, we are fully capable
of handling the growing demand worldwide, and offering excellent technology, solid qualit at
highly competitive prices.

Our Serive



1. We use the world-famous brand accessories like Mitsubishi, Schneider, Siemens, Yuken,
Omron etc.  Before packing machine, we debug machine by letting the machine run for 12 hours.   2. Before packing machine, the machine will run one day for testing oil leakage, repeat error, and
electrical parts performane. Meanwhile, there will be video giving to you (FAT video).    3. Any error(not man-made)happens within the period of guarantee, we offer the according parts
for free.    4. we will offer overseas service if we(the Two Parties) can come to an overseas service agreement.




Certification:



FAQ

  Q1: Are you a factory or trading company? A: We are a factory.   Q2: Where is your factory located? How can I visit there? A: Our factory is located in E Gong Ling West RD. 6-12, Liu Lian Community, Pingdi Town,
Longgang District, Shenzhen China. You can fly to Shenzhen Airport and then take the metro
or city bus to our factory. Warmly welcome to visit us!   Q3:How does your factory do about quality control? A: We have been CE/ISO certificated and have a complete quality controlling system. We test
all the accesories to ensure the quality, and adopt the advanced assembly technology during
production and debug before shipping.   Q4: What's the payment terms? A:T/T, 40% deposits; 60% balance before deliverying is available.
