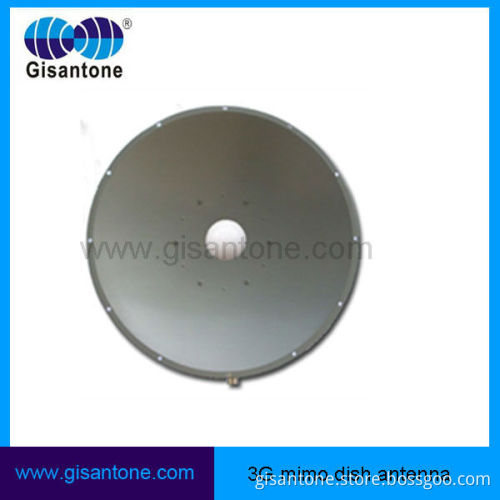

1920-2170MHz 3G mimo parabolic dish antenna with 2*28dBi high gain

Get Latest Price

Delivery Time:: 1 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Guangdong, China (Mainland)

Product Description

Specifications 1,Parabolic dish antenna

2,Outdoor antenna

3,Mimo dish antenna

4,OEM & ODM

5,Certification:ISO 9001:2008, Rohs,CNA

1920-2170MHz 3G mimo parabolic dish antenna with 2*28dBi high gain

Specification :

ELECTRICAL
MODEL	GA-PWD1920-2170-28x2
Frequency Range	1920-2170 MHz
Gain	2*28dBi
Beamwidth	H 7°/6.5 E °
VSWR	≤ 1.5
Input Impendence	50 Ω
Front to Back Ratio	≥ 29db
Polarization	Vertical and Horizontal
Max power	200 -W
Lightning Protection	DC Ground
MECHANICAL
Connector	2*N-K or customized
Size	Φ1.2 m
Pole Diameter	Φ55~φ85 mm
Weight	6.7kg
Rated Wind Velocity	210 km/h
Working Temperature-°C	-40°C~+60°C

Gisantone View:

Introduction : Gisantone has a top researching team, advanced testing equipment and powerful technical strength. We research, produce and sell VHF, UHF, CDMA, GSM, WCDMA, CDMA2000, TD-SCDMA, MIMO , WIFI, WLAN, WIMAX , 5.1G-5.8GHz , 4GHz LTE , directly repeater station, indoor coverage antennae, prettify antennae, wireless public telephone, various communicational antennae of any frequency from 88MHz to 6GHz . Providing OEM & ODM serivces . If you have any needs, welcome to contact . We looking forward to hearing from any of your news . Process of Manufacture :
