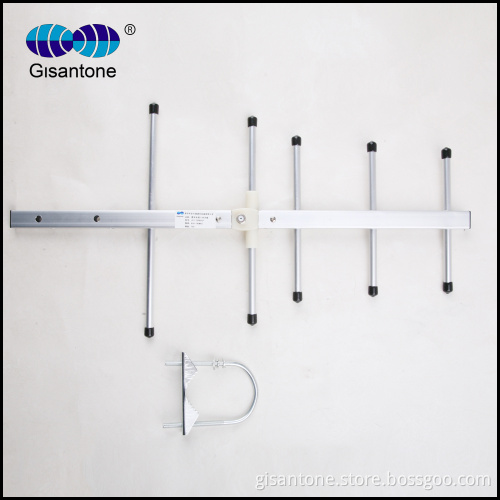

470-860MHz TV antenna digital antenna TV box antenna

470-860MHz TV antenna digital antenna TV box antenna

ELECTRICAL
MODEL	G13224A
Frequency Range	470-860MHz
Input Impedance	75Ω
Half-power Angle	H 55°/ E50°
V.S.W.R	≤ 1.5
Gain	7dBi
Max Input Power	100W
Front to Back Ratio	≥ 15dB
Polarization Type	Vertical or Horizontal
Connector Type	F Female
Lightning Protection	DC Ground
MECHANICAL
Working Temperature	-40℃~65℃
Weight	0.26kg
Pole Diameter	Φ35~φ55
Size	475*250mm
Rated Wind Velocity	210 km/h
Radiating Element	5
