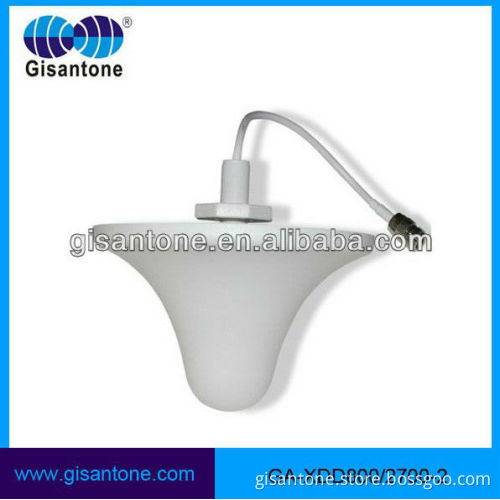

(Manufactory) 800-2700MHz Indoor Wall Mounted Antennas

Specifications 1.Wall Mounted Antennas

2.Competive price

3.High gain

4.Ceiling Mount Antennas

5.OEM & ODM

  (Manufactory) 800-2700MHz Indoor Wall Mounted Antennas                     Specification :

ELECTRICAL
MODEL	GA-XDD800/2700-2
Frequency Range	806-960/1710-2700-MHz
Gain	2-dBi
Beamwidth	H:360-° E:60 ± 10-°
VSWR	≤1.6
Polarization	Vertical
Max power	50 -W
Nominal Impedance	50 -Ω
Lightning Protection	DC Ground
MECHANICAL
Connector­­­	N female or customized
Antenna Dimension	165*85-mm
Weight	0.35-kg
Radome Material	Waterproof ABS
Working Temperature-°C	-40~+60
Shipping Details
Packing QTY:	20pcs / Carton
Carton Size :	770*320*370mm
Package Weight	7kg

      Horizontal Beamwidth :     Vertical Beamwidth :       Introduction :   Gisantone has a top researching team, advanced testing equipment and powerful technical strength. We research, produce and sell VHF, UHF, CDMA, GSM, WCDMA, CDMA2000, TD-SCDMA, MIMO , WIFI, WLAN, WIMAX , 5.1G-5.8GHz , 4GHz LTE , directly repeater station, indoor coverage antennae, prettify antennae, wireless public telephone, various communicational antennae of any frequency from 88MHz to 6GHz .  Providing OEM & ODM serivces . If you have any needs, welcome to contact . We looking forward to hearing from any of your news .
      Installation :     Gisantone View:       Certification :
