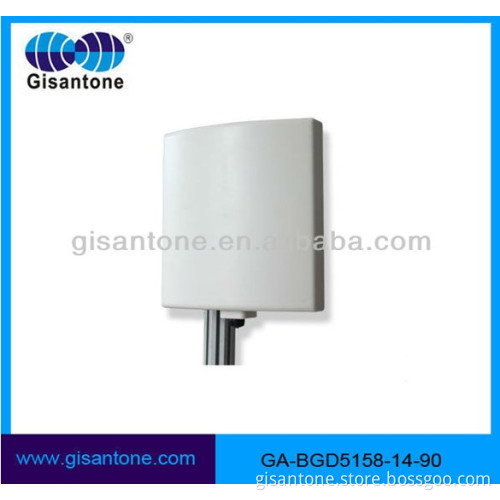

(Shenzhen China Supplier) 5.8GHz Outdoor Antenna 5.8GHz Panel Antenna

Specifications 1,5.8GHz Antenna

2,Durable, corrosion resistance ,waterproof

3,Far distance delivery

4,Signal stability

5,Easy to install

 (Shenzhen China Supplier) 5.8GHz Outdoor Antenna 5.8GHz Panel Antenna        Specification :

ELECTRICAL
MODEL	GA-BGD5158-14-90
Frequency Range	5150-5850-MHz
Gain	14-dBi
Beamwidth	H : 90-° E : 16-°
VSWR	≤ 1.5
Polarization	Horizontal or Vertical
F/B Ratio	≥25-dB
Max power	100 -W
Nominal Impedance	50 -Ω
Lightning Protection	DC Ground
MECHANICAL
Connector­­­	N female or customized
Antenna Dimension	210*190*50-mm
Weight	0.8-kg
Rated Wind Velocity	60-m/s
Working Temperature-°C	-40~+60

      Installation Instruction:         Introduction :   Gisantone has a top researching team, advanced testing equipment and powerful technical strength. We research, produce and sell VHF, UHF, CDMA, GSM, WCDMA, CDMA2000, TD-SCDMA, MIMO , WIFI, WLAN, WIMAX , 5.1G-5.8GHz , 4GHz LTE , directly repeater station, indoor coverage antennae, prettify antennae, wireless public telephone, various communicational antennae of any frequency from 88MHz to 6GHz . Providing OEM & ODM serivces . If you have any needs, welcome to contact . We looking forward to hearing from any of your news .       Certification :
