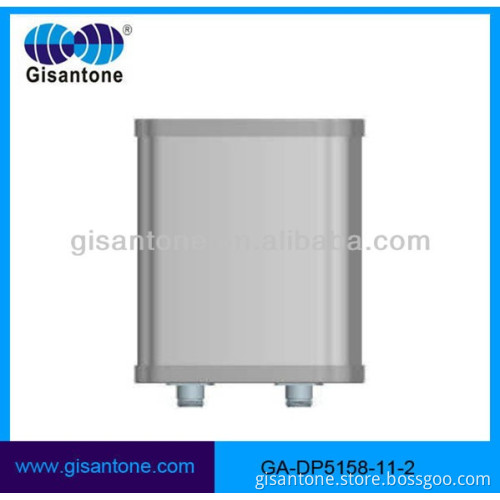

5.8GHz Mimo Panel Antenna 5.8GHz High Gain Antenna

Specifications 1,5.8GHz Antenna

2,Durable,waterproof,corrosion resistance

3,Far distance delivery

4,Good appearance

5,OEM & ODM

 5.8GHz Mimo Panel Antenna 5.8GHz High Gain Antenna     Specification :

ELECTRICAL
MODEL	GA-DP5158-11-2
Frequency Range	5150-5850-MHz
Bandwidth	700-MHz
Gain	11-dBi
Beamwidth	H: 60°E: 30- °
F/B ratio	≥25-dB
VSWR	≤2
Polarization	±45-°
Max power	50 -W
Nominal Impedance	50 -Ω
Lightning Protection	DC Ground
MECHANICAL
Connector­­­	N female or customized
Antenna Dimension	150x160x60-mm
Weight	0.5-KG
Mounting Kits	L bracket & U bolts
Rated Wind Velocity	241-km/h
Mounting Mast Diameter	40-50mm

     Installation Instruction :       Introduction :   Gisantone has a top researching team, advanced testing equipment and powerful technical strength. We research, produce and sell VHF, UHF, CDMA, GSM, WCDMA, CDMA2000, TD-SCDMA, MIMO , WIFI, WLAN, WIMAX , 5.1G-5.8GHz , 4GHz LTE , directly repeater station, indoor coverage antennae, prettify antennae, wireless public telephone, various communicational antennae of any frequency from 88MHz to 6GHz . Providing OEM & ODM serivces . If you have any needs, welcome to contact . We looking forward to hearing from any of your news .     Gisantone View:            Process of Manufacture :           Certification :
