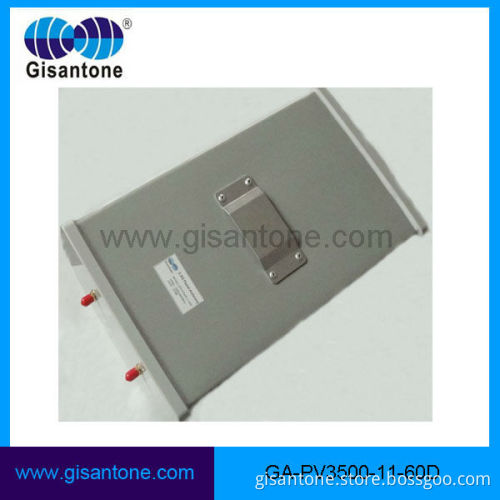

3400-3600MHz 11DBI Wimax MIMO Panel Antenna Outdoor

Specifications 1,Good appearance

2,Durable, corrosion resistance

3,Far distance delivery

4,Easy to install and operate

5,OEM & ODM

        Specification :

ELECTRICAL
MODEL	GA-PV3500-11-60D
Frequency Range	3300-3800-MHz
Gain	11.5-dBi
Beamwidth	H : 60-° E : 20-°
VSWR	≤ 1.5 / 1.7
Polarization	Linear , ± 45-°
F/B Ratio	≥ 20-dB
Max power	100 -W
Nominal Impedance	50 -Ω
Lightning Protection	DC Ground
MECHANICAL
Connector­­­	2*N female or customized
Antenna Dimension	300*180*70-mm
Weight	1.5-kg
Rated Wind Velocity	60-m/s
Working Temperature-°C	-40~+60
SHIPPING DETAILS
Packing QTY	1pc / Carton
Carton Size	350*200*100mm
Package Weight	2-kg

    Horizontal Beamwidth:       Vertical Beamwidth:     Installation Instruction:        Brief Introduction about Gisantone :   Gisantone has a top researching team, advanced testing equipment and powerful technical strength. We research, produce and sell VHF, UHF, CDMA, GSM, WCDMA, CDMA2000, TD-SCDMA, MIMO , WIFI, WLAN, WIMAX , 5.1G-5.8GHz , 4GHz LTE , directly repeater station, indoor coverage antennae, prettify antennae, wireless public telephone, various communicational antennae of any frequency from 88MHz to 6GHz . Providing OEM & ODM serivces . If you have any needs, welcome to contact . We looking forward to hearing from any of your news .       Certification :
