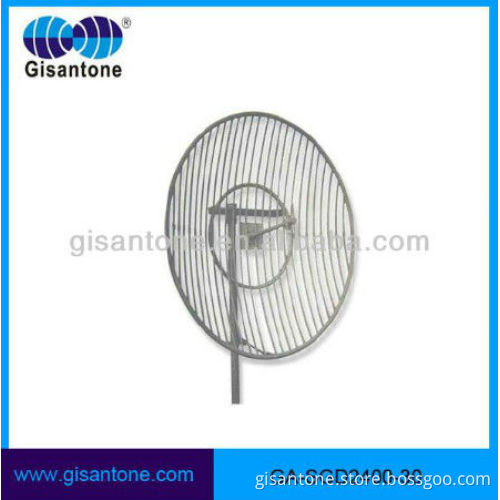

2.4G Outdoor Parabolic Antenna Dish

Specifications 1,Parabolic antenna dish

2,Durable,corrosion resistance

3,Far distance delivery

4,Signal stability

5,Easy to install

2.4G Outdoor Parabolic Antenna Dish         Specification :

ELECTRICAL
MODEL	GA-SGD2400-30
Frequency Range	2400-2500MHz
Gain	30-dBi
Beamwidth	H: 4.5-° , E: 4.5-°
VSWR	≤ 1.5
Front to Back Ratio	≥ 30-dB
Polarization	Vertical
Max power	100 -W
Nominal Impedance	50 -Ω
Lightning Protection	DC Ground
MECHANICAL
Connector­­­	N female or customized
Antenna Dimension	1.8-m
Weight	30-kg
Rated Wind Velocity	60-m/s
Working Temperature	-40 ~ +65°C

     Installation Instruction:       Introduction :   Gisantone has a top researching team, advanced testing equipment and powerful technical strength. We research, produce and sell VHF, UHF, CDMA, GSM, WCDMA, CDMA2000, TD-SCDMA, MIMO , WIFI, WLAN, WIMAX , 5.1G-5.8GHz , 4GHz LTE , directly repeater station, indoor coverage antennae, prettify antennae, wireless public telephone, various communicational antennae of any frequency from 88MHz to 6GHz . Providing OEM & ODM serivces . If you have any needs, welcome to contact . We looking forward to hearing from any of your news .     Gisantone View:         Process of Manufacture :       Certification :
