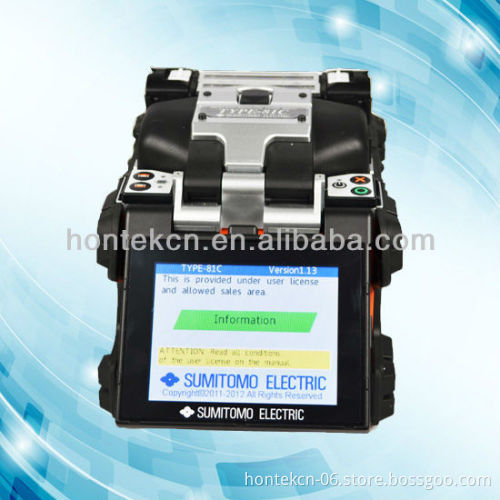

Japan SPLICER MACHINE Sumitomo TYPE-81C fusion splicer!

Contact information Please contact Super Sales Engineer: Jim zheng WhatsApp / Viber: +8613728095480 Skype: honserv     Shenzhen Hontek Co., Ltd. is a professional distributor and product developer for telecom test equipments. We are the sole agency of Comway from California. USA. and also agent for Fujikura, Sumitomo fusion splicers, EXFO, JDSU, Yokogawa test equipments, Anritsu site master. At the same time, we have our own factory producing the fiber testers, patch cords, cables and fiber accessories.   Features : Downsized by 43% from conventional model 2.1kg weight with battery Ultra fast splicing(7sec.) Ultra fast heating(28sec.) G.657 fiber auto splicing function IP52 rating and 76cm drop on 5 faces Automatic arc calibration Touch screen operation Universal clamp for 250µm,900µm tight and loose buffer fiber User selectable heater clamp operation Support bi-directional splicing operation Equipped with onboard training vedio Upgrades software via internet

Product name		TYPE-81C
Optical fiber requirements	Material	Silica glass
	Profile types	SMF (ITU-T G.652), MMF (ITU-T G.651), DSF (ITU-T G.653), NZDSF (ITU-T G.655), BIF (ITU-T G.657), EDF
	Fiber diameter	Cladding diameter: 80μm~150μm, Coating diameter: 100μm~1,000μm
	Applicable fiber or cable size	up to ø1,000μm		Drop cable (2.0×3.1mm) Indoor cable (2.0×2.0mm)
	Cleave length	5~16mm		10mm
Standard performance	Splice loss (typical) *1	SMF: 0.02dB, MMF: 0.01dB, DSF: 0.04dB, NZDSF: 0.04dB
	Splicing cycle time (typical)	7sec. (Quick mode), 7.5sec. (SMF standard mode), 8sec. (Auto mode)
	Heating cycle time (typical)	28sec.
	Splice & Heat cycles *2	Approx.200
	Fiber view & magnification	Two CMOS cameras observation 320X (zoom:700X) for X or Y single axis view, 88X for both X & Y dual axis view
Programs	Splicing programs	Max.300
	Heating programs	Max.100
Functions	Loss estimation	Provided
	Splice image capture/ Splice data storage	64 images/10,000 splice data
	Proof test	1.96N (200gf)
	Attenuation splicing	0.1dB to 15dB in 0.1dB increments
	Universal clamps for 250μm, 900μm tight & loose buffer fiber	Provided
	Reversible coating clamps	Provided
	Dual automatic independent heaters	Provided (US patent 7,412,146)
	User-selectable heater clamp operation	Provided
	Onboard user training video	Provided
	Automatic arc calibration	Automatically compensates for environmental condition changes
	Arc test	Provided
	Display of remaining Splice & Heat cycles	Provided (Battery mode)
	Remote interactive maintenance	Provided
Size/Weight	Size	120(W)×154(D)×130(H)mm (without anti-shock rubber)
	Weight	1.8kg (without battery), 2.1kg (with battery)
	Monitor	4.1" touch screen color LCD display
Terminals	DC output	DC12V (for JR-6)
	USB port	USB 2.0 (mini-Btype)
	Storage media	SD/SDHC memory card
Power supply	AC input	100~240V, 50/60Hz (ADC-1430)
	DC input	10~15V
	Battery module	Li-ion 11.1V, 4,600mAh (BU-11)
Operating condition	Altitude:0~6,000m, Temperature: -10~+50°C, Humidity: 0~95% (non-condensing), Wind velocity up to 15m/s
Storage condition	Temperature: -40~+80°C, Humidity: 0~95% (non-condensing), Battery: -20~+30°C (long term)
Electrode life	3,000 arc discharges *3

  *1:When the fibers used are identical to Sumitomo's fibers. *2:Splice & Heat cycles may vary depending on the battery status and the operating environment. *3:Electrode life may vary depending on the operating environment. Environmental Durability*

Shock resistance	Drop from 76cm on 5 faces (excluding top face)
Water resistance	Equivalent to IPx2 (Operates normally after being exposed to water dripping at 3mm/min. for at least 2.5min on each of 4surfaces tilted at 15º)
Dust resistance	Equivalent to IP5x (Operates normally after 8hours in a dust chamber containing dust of particle size 25μm or below)

  *Confirms the battery operation in tests carried out by Sumitomo. Does not guarantee that the product is free of faults or damage.   USA Comway Fusion Splicer C10 is equal to Fujikura FSM-60S and better than Sumitomo Type-81C
