Sumitomo Type-Q101-CA Core Alignment Fusion Splicer/Splicing machine

Specifications Sumitomo Type-Q101-CA Core Alignment Fusion Splicer/Splicing machine, type-81c,type-81c,Fusion Splicer,type-81c,Splicing machin

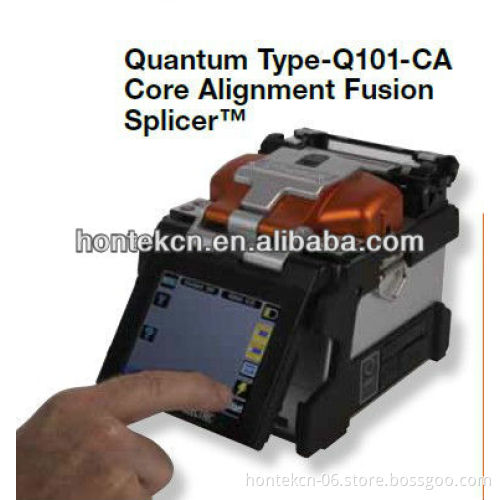

Sumitomo Type-Q101-CA Core Alignment Fusion  Splicer/Splicing machine IN STOCK The Quantum Type-Q101-CA marks  the new standard for fusion splicers.  It is the industry’s first and ONLY fusion splicer with: fully navigational touch screen interface for optimum user friendliness; SD port for virtually unlimited data storage, plus work-related video, audio, and software uploads/downloads; remote maintenance capability; the largest fiber view;  and the longest electrode life—with  the legendary reliability common to  all Sumitomo splicers.

The Quantum is the lightest, smallest, and most advanced core alignment fusion splicer in the industry; yet it’s also more rugged with superior dust, shock and water-proof resistance, making it the ideal choice for even the harshest environments. The built-in dual heater system, a Sumitomo Electric innovation, reduces heater wait time and improves splicing efficiency by 70%, yielding a splicer with the speed, performance, and specifications that advances fusion splicing technology.   Features The Quantum is the 1st and Only Fusion Splicer in the Industry with: Advanced Technology that’s Light Years Ahead of the Rest
Fully Navigational, High Resolution, Touch Screen Interface for Faster
   & Easier Splicer Functionality and Performance
SD Port for Virtually Unlimited Data Storage
Work–Related Video, Audio & Software Uploads and Downloads
Longest (3,000) Electrode Life
Internet Interface for Remote Maintenance Capability
Largest 640x320 Fiber View
  Other Features Include:  (also see video below) Industry’s Lightest Weight & Smallest Footprint Core Alignment Splicer
Dual Independent Heat Shrink Ovens
Ruggedized Design for Shock, Water, and Dust Resistance
Automatic Splice Start, Arc Calibration, Heater Start and Fiber Identification
Hard Carrying Case with Integrated Work Platform
Multiple Positional Monitor with Automatic Display Inversion
Fiber Holder or Fiber Clamp Selectable
Battery Recharges While Splicing with AC Power
Long Life Battery for 200 Splice and Heater Cycles per Charge
Lynx2-Mini and Lynx2–CustomFit® Splice-On Connector Compatibility
RoHS Compliance
24-Hour Technical Support via 1-888-SPLICER      Sumitomo Type-81C Fusion Splicer are IN PROMOTION! Sumitomo Fusion Splicer Type-81C Package
With these accessories:
1. main unit      Type-81C/1pc
2. AC adapter        ADC-1430/1pc
3. cooling tray         1pc
4. charging cord          1pc
5. electrode(spare)         ER-10/1pc
6. battery module         BU-11/1pc
7. fiber cleaver             FC-6SE/1pc
8. operating CD manual       1pc
9. carrying case              1pc
10. 1 year's warranty       Japan Fujikura  FSM-80S  Splicing machine / Fusion Splicer with best price   The FSM-80S is core-to-core alignment single fiber splicer succeeding to FSM-60S. In addition to ruggedized concept, which 60S created, the 80S has a series of new features, such as "Automated wind-protector and tube-heater" for quicker splicing cycle as well as fewer operation steps, "innovative carrying-case design" for
quicker preparation, "powerful Li-ion battey" for longer operation, high resolution bigger LCD monitor, and "built-in operation manuals" in various languages. Market is from backbone network installation to opto-electronics components production for quality splice.

Applicable fibres	SM (ITU-T G.652 & G.657), MM (ITU-T G.651),DS (ITU-T G.653), NZDS (ITU-T G.655),Others
Fibre Count	Single
Cladding diameter	80 to 150μm
Coating diameter	100 to 1000μm
Fibre cleaved length	5 to 16mm using Sheath Clamp A, B or 5 to13mm using FH-60-250, FH-60-900
Actual average splice loss	0.02dB with SM, 0.01dB with MM, 0.04dB with DS, 0.04dB with NZDS.
Splice time	7sec:SM FAST mode, 12sec :SM AUTO mode, 15sec:AUTO mode
Return loss	60dB or greater
Splicing modes	100 splicer modes are available
Splice loss estimate	Several types of core deformations as well as core axis offset are taken into account for accurate loss estimate.
Attenuation splice function	Intentional high splice loss of 0.1dB to 15dB (0.01dB step) can be made for an inline fixed attenuator
Storage of splice result	The last 2000 results to be stored in the internal memory.
Magnification	X / Y (300X magnification), or both X and Y simultaneously (160X magnification)
Viewing method	By two CMOS cameras for intersecting fiber viewing and 4.73 inches TFT colour LCD monitor
Tension test	1.96 to 2.25N
Operating condition	0-5000m above sea level, 0-95% RH and -10 to 50°C respectively.
Tube heater	Built-in auto-start tube heater with 10 heating modes and up to 20 for reference
Tube heat time	13-15sec. with FP-03 protection sleeve. Total memory of 30 heating modes are available
Applicable protection sleeve length	60mm, 40mm and a series of micro sleeves.
No. of splice/heating with battery	200 times of splicing and heat shrinking under with BTR-09
Power supply	Auto voltage selection from 100 to 240Va.c. or 10 to 15Vd.c. with ADC-18. 14.8Vd.c. with BTR-09
Terminals	USB2.0 ( Mini-B) for data and video signal transfer to PC.
Wind protection	Up to 15m/s wind velocity
Dimensions	146(W) x 159(D) x 150(H) mm Including wind protector, monitor, and rubber protector Excluding rubber foot
Weight	2.5 kg, with ADC-18 AC adaptor 2.7 kg, with BTR-09 battery
Electrode life	3000 arc-discharges


                                          Standard Package

Item	Description	Model No.	Qty
1	Fusion Splicer	80S with CLAMP-S70A	1 pc
2	AC adaptor/battery charger	ADC-18	1 pc
3	AC power cord	ACC-XX	1 pc
4	Spare Electrodes	ELCT2-20A	1 pair
5	Cleaver	CT-30A	1 pc
6	Battery Pack	BTR-09	1 pc
7	USB cable	USB-01	1 pc
8	Quick reference guide	M-80S/19S-E	1 pc
9	Warning and cautions	W-70-E	1 pc
10	Instruction Manual	M-70	1 pc
11	Alcohol Pot	AP-01	1 pc
12	Battery charge cord	DCC-18	1 pc
13	Carrying Case	CC-30	1 pc
14	Screw Driver	SD-01	1pc

        Our main products as below:   1. FUSION SPLICER: Sumitomo (Type-81C/39/-66/); Fujikura (fsm-80S/60S/70R); Fitel S178A; HSV-6000
2.OTDR: EXFO (FTB-1/AXS-110/AXS-100/ FTB-200/FTB-500); JDSU (MTS-2000/4000/6000/8000); YOKOGAWA (AQ7275)
3. POWER METER (PPM-350c, FPM-300, HSV300-P); LIGHT SOURCE (FLS-300, HSV300-L); VFL (FLS-241, HSV-321); Multi Loss tester (FOT-930, FOT-302)
4. Anritsu site master S331D, S331L, S331E,S332E.
5. Fiber cleaver (CT-30A/FC-6S), adapter, battery, electrode, connector, fiber tool kits
6. Fiber cable, patch cord, adapter, closure, pigtail, optical switch, patch panel, etc..
7.Maintainance and repair ,calibration service for the EXFO, Sumitomo, Fujikura, Anritsu.       Be free to contact Jim if any questions
