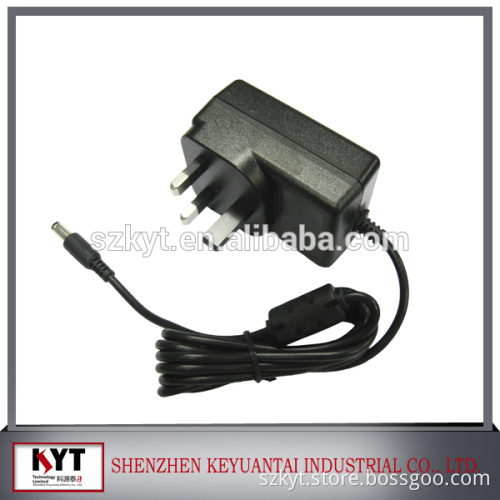

ip digital tv set top box adapter 12V 36W DVD player mains DC power supply adapter

Specifications 12V 36W Set top box Adapter

1.High quality,competitive price

2.CE,KC,FCC,ROHS

3.twelve months warranty

4.punctual delivery

Product Description:   12V 36W Set top box Adapter

Input	100 to 240V AC, 50/60Hz
Output power	36W series
Output voltage	5V/12V/24V DC
Output current	500mA-3000mA
Protection	Overload protection
	Output over voltage protection
	Short circuit protection
Certificate	CEC power supply standard
	CE approved (EMC, TVD)
	KC
	ROHS
	FCC
Efficiency	Mini 78 %
Standard DC Connector	5.5*2.5 / 5.5*2.1 /5.5*1.7 / 4.8*1.7 /4.0*1.7/3.5*1.35/6.3*3.0 with pin inside
No Load Power Consumption	≤0.3W at Rated Voltage
Ripple And Noise	Output voltage 1%
High-Voltage test	Primary to secondary: 3 kV 5 mA 60S
Leakage Current	0.5 mA(max) at input 240V AC
Operating Temperature Range	0--40°C
Storage Temperature Range	-20 --- 85°C
High Humidity Operation	+ 40 °C and 90 ~ 95% Humidity
Dimension	76.0mm*49.0mm*36mm
Net weight	About 175 gram per unit
MTBF	50,000 hours
Insulation Resistance:Primary to Secondary	50 Meg. Ohms min. 500VDC
Application	Water purifier, LED, Medical machine,CCTV camera, LCD, Set-top box, DVR, Router, Modem,etc.
Packing A	Qty: 44PCS/CTN
	MEA: L47cm*W30cm*H18cm
	Packing Material:PE bag+white box+carton
Packing B	Qty: 72PCS/CTN
	MEA: L47cm*W38cm*H25cm
	Packing Material:PE bag+Paper segment+carton

  Product Show:   Packaging: Shipping: Certificates: We Supply:       AC/DC adapter, USB Charger ,Tablet Adapter/Charger,Power supply, Switching power supply , Led Adapter , Printer adapter, Car Charger . welcome inquiry
