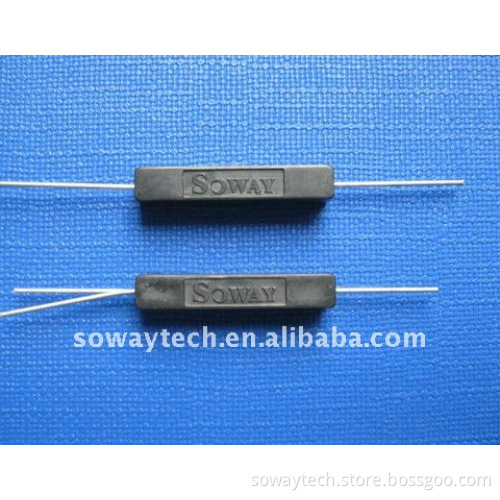

Mould magnetic plastic reed switch (RS-90)

Specifications Mould magnetic plastic reed switch

1.Easily mounted

2.Hermetically sealed

3.Suit to tough environment

RS-90 Mould Reed switch
Features ·Form A,B,C available ·High power switches avaible ·Various case sizes available ·Different operate sensitivities available Applications ·Telecommunications ·Telephone hook switch, keyboard applications, micro switch ·Domestic applocances ·Door switch for washing machines, dishwashers, microware/baking ovens, refrigerators etc. ·Limit switch for low power signals ·Garage door control, lever hoists, conveyors ·Lifts/elevators ·Position indicators Specifications

Parametes	Units	Value	Test Conditions
Contact Form	C type contact (change over)
Contact Rating	W – max.	3
Switching Voltage	V – max.	DC100
Switching Current	A – max.	0.25
initial Contact Resistance	– max.	0.2
Insulation Resistance	– min.	109
Contact Capacitance	pF – typ.	0.8
Electrical Life	Cycles – min.	8 10	10mV, 10mA
Operating Temperature	°C	-20 ~ +80
