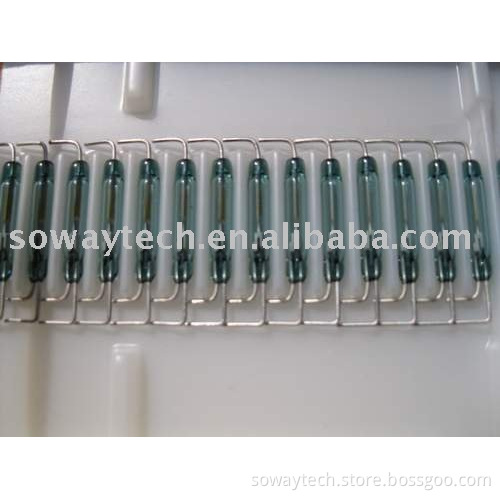

Glass magnetic reed switch/ reed sensor(20mmX2.7mm)

Specifications Reed switch RI-48:

1. Normally open reed sensor.

2. RoHs magnetic reed switch.

3. High good quality and excellent function.

Magnetic Reed switch RI-48 series features: (1) Perfect heavy load switch  (2) 10 mm glass length, can handle loads up to 70 Watts (3) Contact layers: gold, supttered ruthenium (4) Superior glass-to-metal seal and blade alignment (5) Excellent life expectancy and reliability   Technical parameters:

Item	Unit	Nominal
Operate Range	AT	40-45
Switch Power(Max)	W	70
Switch Voltage(Max)	V	DC200   AC250
Switch Current(Max)	A	1
Carry Current(Max)	A	1.75
Contact Resistance(Max)	milliohm	90
Insulation(Min)	W	106
Actuation time	ms	0.35
Release Time(Max)	μs	30

  Shock The switch are tested in accordance with "IEC 68-2-27", test Ea ( peak acceleration 500G, half sinewave; duration 11ms). Such a shock will not cause an open switch ( no magnetic field present) to close, nor a switch kept closed by an 80 AT coil to open. Operating and Storage Temperature Operating ambient temperature; min: -55°C; max: +125°C. Storage temperature; min: -55°C; max: +125°C. Note: Temperature excursions up to 150°C may be permissible.
