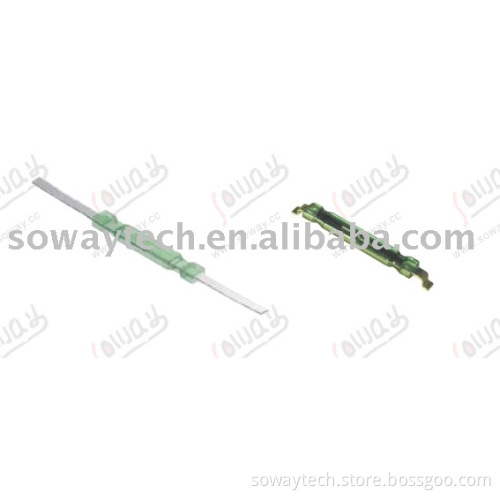

SMD reed switch/flat pin magnetic contactor

Specifications flat reed switch,SMD

Suit to tough environment and long life.

Performance is steady and easy to be welded.

Flat reed switch SMD/ flat pin magnetic contactor 1. Flat pin is easy to weld. 2. With flexible and strong performance and shake resistant. 3. Single contact, normally open type 4.Widely used in relays, sensors and other industrial field. Technical Datas:

Items	Unit	Nominal
Operate Range	AT	15-28
Switch Power(Max)	W	70
Switch Voltage(Max)	V	DC100
Switch Current(Max)	A	0.5
Carry Current(Max)	A	1.5
Glass part length	mm	15.24
Total length	mm	34.54
Glass diameter	mm	2.34
