Magnetic door switch/Reed switches for Home appliances

Specifications Magnetic door switch/Reed switches

1.RoHS compliant reed switch.

2.COTO brand,long life door switch

3.High sensitivity,safe.

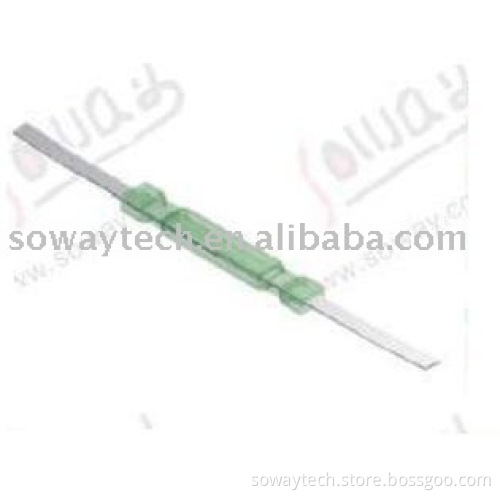

Flat reed sensor COTO brand FR3S/Magnetic door switch/Reed switches: 1. Flat pin is easy to weld. 2. With flexible and strong performance and shake resistant. 3. Single contact, normally open type 4.Widely used in relays, sensors and other industrial field.  Technical Parameter:

Item	Unit	Nominal
Operate Range	AT	10-40
Switch Power(Max)	W	5
Switch Voltage(Max)	V	DC100
Switch Current(Max)	mA	500
Carry Current(Max)	A	1.55
Contact Resistance(Max)	milliohm	500
Insulation(Min)	Ohm	105
Actuation time	ms	0.5
Release Time(Max)	ms	0.2
