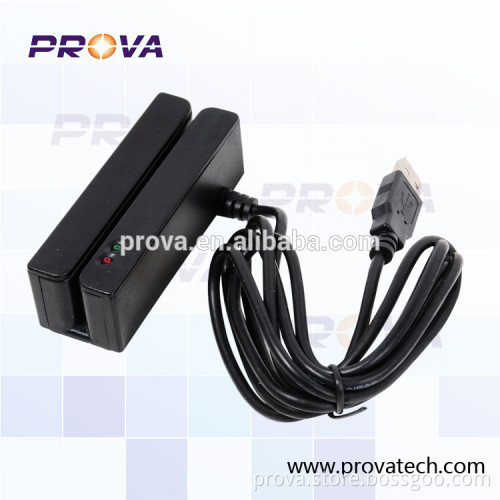

mini USB OTG card reader

Specifications *.Read through USB OTG of Tablet

*.Plug&Play, doesn't need driver

*. Dual directional read

*.Mini USB card reader

 Mini magnetic card reader/mini tablet card reader/mini USB  OTG card reader eature: Manual swipe type reader. Bi-direction read capability. ISO 7811 conformance. RS-232 interface, baud rate adjustable.
USB port and TTL at optional. Operation responded by two LEDs and buzzer. Power supplied by PC keyboard. Small size. ( Dimension(L*D*H): 90*28*27 mm) DLL/OCX developing kit for Windows98/ME/NT/2000/XP. Sleeping mode (power saving). Cover: Plastic Specification

	Track 1	Track 2	Track 3
Recording density	210 BPI	75 BPI	210 BPI
Capacity	79 characters (7 bit code)	40 characters (5 bit code)	107 characters (5 bit code)
Power	Power supplied by the computer Power supplied by the cocomputer
Card operation speed	10 ~ 180 cm/sec   10 ~ 180 cm/sec
Decoding method	F/2F   F/2F
Operation temperature	-10 ~ 50°c   -10 ~ 50°c
Life time of head	Approx. 300,000 passes Approx. 300,000 passes
Baud rate	2400 bps,9600 bps,19200 bps   2400 bps,9600 bps,19200 bps
Card standard	ISO 7811   ISO 7811
Cable length	120 cm   120 cm
Dimension (L*D*H)	90*28*27 mm

...
