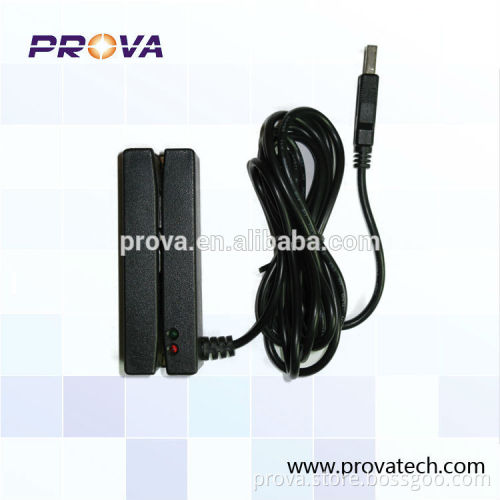

ISO 7811 USB card reader magnetic head

Specifications 1.Read through USB OTG of Tablet

2. Dual directional read

3.Mini Android Tablet USB card reader

4.ISO 7811 USB card reader

  Mini Android Tablet USB card reader/   ISO 7811 USB card reader magnetic head Dual-direction read capability.   ANSI, ISO, ABA standard conformance.
Connect with PC through USB port or Android tablet with USB OTG. Small size. ( Dimension: 63(L)X31(W)X27(H) mm) Cover: Plastic    Specification

Card standard	ISO 7811 / 7812
Card operation speed	10 ~ 150 cm/sec(210 DPI)
Interface	USB
Baud rate	1200 / 2400 / 4800 / 9600 bps
Life time of head	> 500,000 passes
Power	DC +5V±5%(host)
Decoding method	F/2F
Current	track1 3.5 mA	track2 5.2 mA	track3 7.3 mA
Operation temperature	-10 ~ 50 °C, 15-85%RH, non-condensing
Cable length	1.5 m
Weight	80g
Dimension:	63X31X27mm

...
