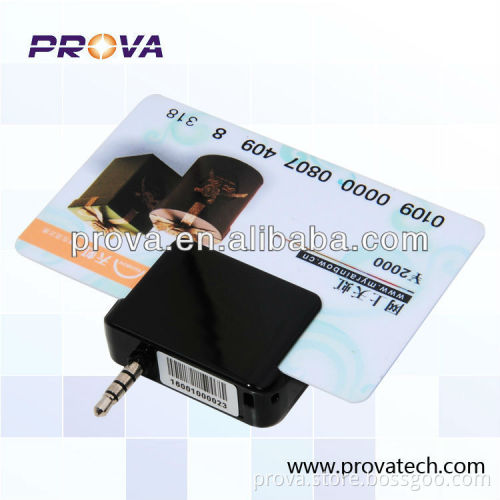

Encrypted Mobile Strip Reader for Android/IOS system

Specifications 1. Support 30pin iPhone&iPad

2. Support Android/IOS phones

3. Encrypted Mobile Strip Reader for Android/IOS system

  Encrypted Mobile Strip Reader  for Android/IOS system   Slim size: light and slim size for high portability Reduce investment: The user may use own mobile phone to complete the transaction. No need to invest for the heavier POS or ePOS High security: Data is encrypted before transmitted to the mobile phone. Avoid the possibility of being stolen by Trojan horses. High reliability: Embedded professional decoder IC speed up the decoding. High swiping performance Ultra low power consumption:Power up by button cell. Peak operating current <1mA, which could be the lowest power consumption in the similar products. High compatibility:Support bidirectionalcommunication between phone and device. Compatible for domestic and imported mobile phones. Can support 90% or above smart phones.   Specification:

Model	MS612 (Dual tracks: 1, 2 track) MS623 (Dual tracks: 2,3 track)
Power Source	Power   up by embedded button cell (Depend on customer: Can be   powered up by Audio jack of Mobile phone)
Connection to mobile	Plug-in   4 pins 3.5mm audio jack
Cards	Magnetic card. e.g. Credit cards, debit cards, membership cards
Decoder type	Build-in   Hardware decoder
Battery life	20,000 times for normal swiping.
Battery standby time	5 years
Swiping speed	3   - 70 IPS (7.6 - 177.8 cm/s)
Swiping direction	Dual   direction
Swiping time	500,000   times
Encryption	Swiped   data encrypted before sent to mobile phone
Encryption method	Optional:   3DES (TDES)/AES. Support FIXED KEY or DUKPT key management
Encryption spped	<200ms   (complete data encryption from all tracks)
Supporting system	iOS,   Android system
Peak current	<1mA
Operating Temperature	-20   °C to 60°C
Measurement	41.7mm x 30mm   x 13.7mm
Weight	18g
