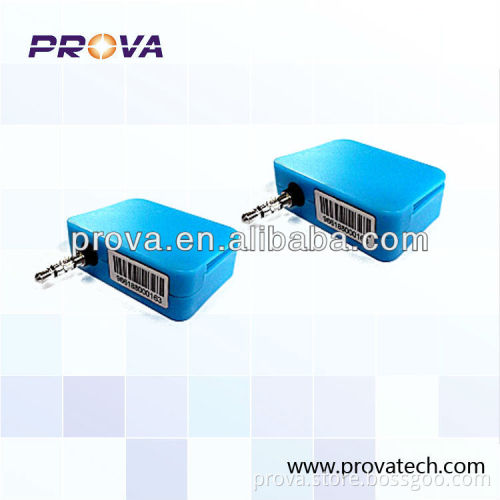

headphone jack card reader for IOS and Android

Specifications 1. Support 30pin iPhone&iPad

2. Support Android/IOS phones

3. headphone jack card reader for IOS and Android

headphone jack card reader for IOS and Android   Product Description: This product is an innovative device of mobile POS with slim size, low cost, high security, high reliability. There is no need to have battery. It can settle the payment transaction through swiping bank card or credit card at anytime and anywhere. 1. Slim size: light and slim size for high portability 2. Reduce investment: The user may use own mobile phone to complete the transaction. No need to invest for the heavier POS or ePOS 3. High security: Data is encrypted before transmitted to the mobile phone. Avoid the possibility of being stolen by trojan horses. 4. High reliability: Embedded professional decoder IC speed up the decoding. High swiping performance 5. Ultra low power consumption: Peak operating current <1mA, which could be the most lowest power consumption in the similar products. No extra button cell is required. Current comes from the audio jack of the mobile phone or tablet PC 6. No Electrolytic Capacitor: No additional Electrolytic Capacitor is required to charged up the device. Thus, reduce BOM cost, volume and swiping time .

Model	MS201 (Single track: 1st track)   MS202 (Single track: 2nd track) MS212 (Dual tracks: 1, 2 track)   MS223 (Dual tracks: 2,3 track)
Power Source	Power up by Audio jack of Mobile phone
Connection to mobile	Plug-in 4 pins 3.5mm audio jack
cards	Magnetic card. e.g. Credit cards, debit cards, membership cards
Decoding format	Build-in Hardware decoder
Swiping speed	3 - 70 IPS (7.6 - 177.8 cm/s)
Swiping direction	Dual direction
Swiping time	500,000 times
Encryption	Swiped data encrypted before sent to mobile phone
Encryption method	Optional: 3DES (TDES)/AES. Support FIXED KEY or DUKPT key management
Encryption spped	<200ms (complete data encryption from all tracks)
Supporting system	IOS, Android system
Peak current	<1mA
Operating Temperature	-20 °C to 70°C
Measurement	45mm x 31mm x 13mm
Weight	18g
