huawei BM358 2.3-2.4GHz with 2Rx 1Tx Antenna wireless 4g wimax usb modem

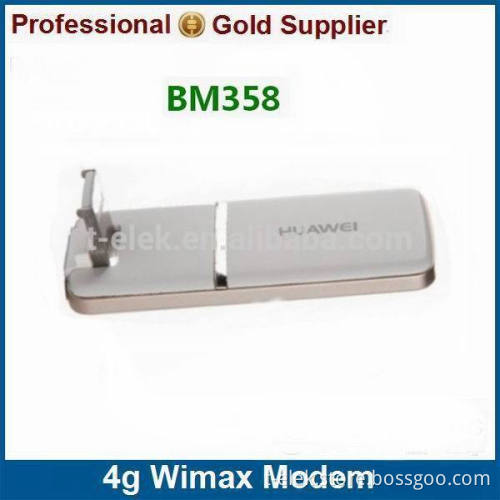

  Product Description huawei BM358 4g wimax usb modem Feature: HUAWEI BM358 WiMAX USB Modem is one of the new WiMAX 4G USB Surfstick based on IEEE 802.16e-2005. It support WiMAX 2.3GHz-2.4GHz. HUAWEI BM358 has many basic functions that meet the requirements of our customers. It supports peak downlink speed at 20Mbps and uplink at 5 Mbps. If with MIMO, the peak speed could reach 40 Mbps.   * Frequency: 2.3-2.4GHz * Standard: IEEE802.16e-2005 Wave 2 (WiMAX) * Radio access method: TDD modulation * Channel bandwidth: 10MHz Specifications: * Frequency: 2.3-2.4GHz * Standard: IEEE802.16e-2005 Wave 2 (WiMAX) * Radio access method: TDD modulation * Channel bandwidth: 10MHz * Modulation: QPSK, 16QAM, 64QAM (DL only), CC and CTC modulation coding * Transmit Power: 23dBm * Interface: Plug-and-play USB 2.0 * Antenna: 2Rx 1Tx * MIMO: Matrix A and B * Power Control: Open and closed loop power control (Adaptive Modulation) * QoS management: ertPS, nrtPS, rtPS and BE * Max power consumption < 1.75W * Supported OS Windows XP – 32-bit version only, Windows Vista and Windows 7, Mac OS 10.5 and above (32-bit only) * Dimensions: 77 x 28 x 10mm * Weight: 22g Product show:     Packaging & Shipping Packing : General packing or as customized package   Delivery time : About 2-5 days after receiving the deposit
