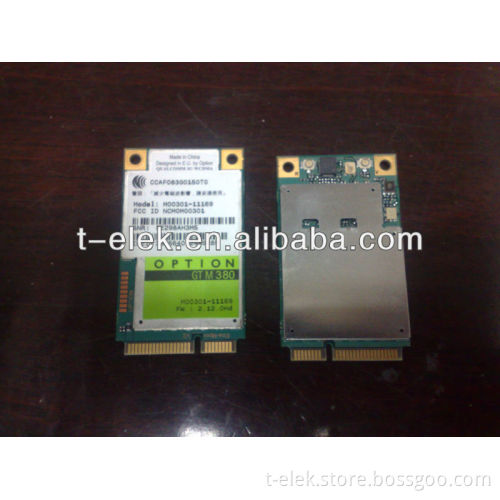

Option GTM 380 mini pcie wifi module

Specifications The Option GTM380 MO 0301 is a third generation PCI Express MiniCard module with GPS function.

The Option GTM380 MO 0301 is a third generation PCI Express MiniCard module with GPS function. Delivering fast HSUPA speeds up to 2.0Mbps and HSDPA speeds up to 7.2Mbps it is ideal for applications with high uplink bandwidth requirements.It is also backwards compatible for lower data rates   Specifications   *HSUPA/HSDPA/UMTS
Multi-bands variants ( >> bands with Rx diversity are underlined)
MO 0301: 850/1900/2100 (Rx diversity) MHz
Power Class 3 (+24 dBm)
HSUPA mode: 2.0Mbps: Category 5
HSDPA modes:
HSDPA 7.2: Category 7 and 8
HSDPA 3.6: Categories 5 and 6
HSDPA 1.8: Categories 1-4, 11 and 12
Equalization and Rx Diversity at the same time
UMTS: 384Kbps operation in up- and downlink
Support UL and DL Compressed Modes
Circuit-switched data: 64, 14.4 and 9.6Kbps *EDGE
850/900/1800/1900 MHz
GSM Power Class 4 (2W) for 850/900 bands
Power Class 1 (1W) for 1800/1900 bands
EDGE class E2 (+27 dBm in 850/900 bands, +26 dBm in 1800/1900 bands)
GPRS/EDGE Multislot Class 12 (4 slots Rx, 4 slots Tx)
GPRS/EDGE Class B Type 1 MT
GPRS CS1-CS4; EDGE MCS1-MCS9
Circuit-switched data: 14.4 and 9.6Kbps *Terminal Equipment Interfaces
USB 2.0 signalling
AT interface with standard modem emulation
NDIS and Modem interface drivers
NDIS for OS compliance and future proofing (Vista)
Modem interface to allow 3rd party application support
EAP-SIM/EAP-AKA support
Operating Systems supported:
Windows® 2000 SP4/XP Home/XP Professional/Vista
Tablet XP Pro/Mac OS X
Power Requirements Vcc 3.3V +/- 9%
Approvals and certifications
All applicable regulatory approvals, Operator and Infrastructure IOT
Microsoft certified drivers
R&TTE (900/1800/2100) and FCC (850/1900)
GCF (900/1800/2100)
RoHS Compliant
Assisted/Standalone GPS
A-GPS and S-GPS modes, as described below:
MS-based, MO or MT
MS-assisted, MO or MT
Stand-alone
