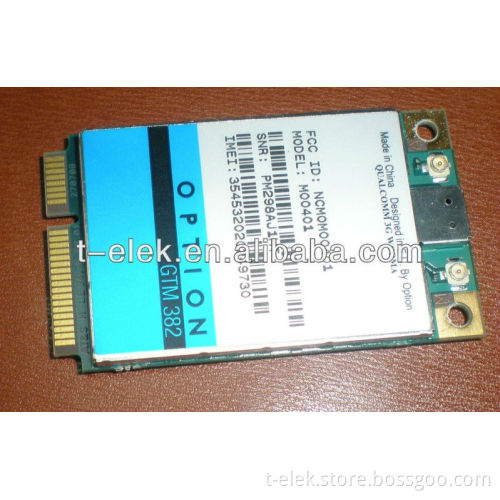

Option gtm382 3g module

Specifications The GTM382 is a multi purpose embedded module with support of fastest 3G-connections for upload and download

option GTM382 With HSDPA data rates of up to 2 Mbps in uplink and up to 7.2Mbps in downlink the fourth generation GTM382 Mini Card is the perfect solution for embedding HSUPA, HSDPA, 3G and EDGE connectivity technology into laptops. Its upload speeds make it particularly suitable for demanding applications such as video surveillance and transmitting large files. 3GPP Type III Advanced Receiver Technology comes as standard with the GTM382, providing increased reliability in weak signal areas. And thanks to triple-band 3G and quad-band 2G support, the GTM382 can be used anywhere in the world.
Built in A-GPS capability allows laptops to integrate location-based services in their devices, providing additional value to their customers.
Additionally, PCM voice support allows integration of the module in wireless routers. High-speed PCI Express Mini Card module for worldwide use High speed: Up to 5.76Mbps uplink and 7.2Mbps downlink Easy to integrate GPS and Voice features Auto-customization based on SIM card   Specification: Hardware specifications Operating Temperature: -10°C to +55°C Extended Operating Temperature:-25°C to +75°C Storage Temperature: -40°C to +85°C Humidity: 5 to 95% non-condensing Specifications HSUPA/HSDPA/UMTS Multi-bands variants (bands with Rx diversity are underlined) GTM382 W (MO0402):
850/1900/2100 MHz Power Class 3 (+24 dBm) HSUPA mode: 5.76Mbps: category 6 HSDPA modes: HSDPA 7.2: Categories 7 and 8 HSDPA 3.6: Categories 5 and 6 HSDPA 1.8: Categories 1-4, 11 and 12 Equalization and Rx Diversity
at the same time UMTS: 384Kbps operation
in up- and downlink Support UL and DL Compressed Modes Circuit-switched data: 64, 14.4 and 9.6Kbps Power Class 1 (1W) for 1800/1900 bands EDGE class E2 (+27 dBm in 850/900 bands,
+26 dBm in 1800/1900 bands) GPRS/EDGE Multislot Class 12
(4 slots Rx, 4 slots Tx) GPRS/EDGE Class B Type 1 MT GPRS CS1-CS4; EDGE MCS1-MCS9 Circuit-switched data: 14.4 and 9.6Kbps Terminal Equipment Interfaces USB 2.0 AT interface with standard modem emulation NDIS and Modem interface drivers NDIS for OS compliance and future
proofing (Vista) Modem interface to allow 3rd party
application support EAP-SIM/EAP-AKA support Operating Systems supported: Windows ® XP Home & Professional, Windows Vista ® , Windows ® 7, Windows ®CE Tablet XP Pro/Mac OS X PCM voice support on PCIE minicard interface EDGE 850/900/1800/1900 MHz GSM Power Class 4 (2W) for 850/900 bands, GSM Power Requirements Vcc 3.3V +/- 9% Approvals and certifications All applicable regulatory approvals, Operator and Infrastructure IOT Microsoft certified drivers R&TTE and FCC GCF PTCRB for GTM382 AWS and GTM382 W RoHS Compliant Voice features Circuit-switched voice calls over GSM/ WCDMA air interfaces, MO and MT Controlled through AT commands Bi-directional PCM interface for audio streams
(8-bits u-Law A-Law, 16-bits linear) Voice codecs: GSM/WCDMA AMR, FR, EFR, HR Echo Cancellation, Noise Suppression, TTY Tone detection/generation Emergency call support CLI Service, Alternate Line Service Fixed number dialling Supplementary services Phonebook
>>SMS Management Assisted/Standalone GPS A-GPS and S-GPS modes, as described below: MS-based, MO or MT MS-assisted, MO or MT Stand-alone Size: 51x30mm
