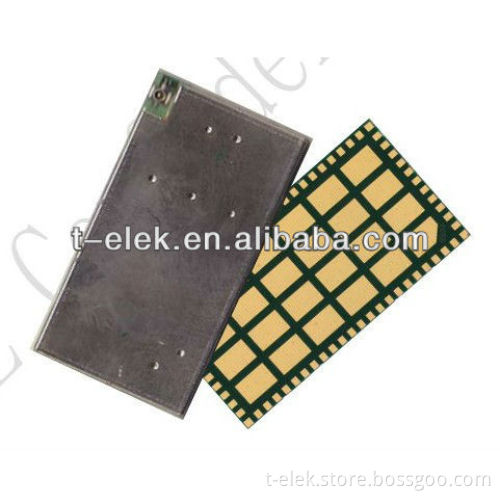

Zte MF206 module
- Delivery Time:
- 2 Days
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | China (Mainland) |
|---|
Product Description
Product Description
Specifications 1.GSM / GPRS / EDGE 850/900/1800/1900MHz
2.Control Via the AT Commands
3.Dimensions: 19.5mm * 36mm * 2.85mm
The MF206 specification: The basic characteristics of WCDMA / HSDPA 2100MHz GSM / GPRS / EDGE 850/900/1800/1900MHz Of WCDMA / HSDPA 2100MHz: +24 dBm (power class 3) The GSM / GPRS 850/900MHz: +33 dBm (power class 4) The GSM / GPRS 1800/1900MHz: +30 dBm (power class 1) EDGE, 850/900MHz: +27 dBm (power class E2) EDGE, 1800/1900MHz: +26 dBm (power class E2) GPRS: the Multi-the slot Class 10 EDGE: Multi-the slot Class 12 Power: Average 1.20W Maximum 2.20W Control Via the AT Commands Supply voltage: 3.4 ~ 4.2V Temperature range: Operation -30 to +85 ° C Storage -40 to +90 °C Humidity: 5% to 95% Dimensions: 19.5mm * 36mm * 2.85mm Weight: 4g Data of HSDPA: 3.6Mbps Of WCDMA the PS: DL: 384Kbps UL: 384Kbps Of WCDMA the CS: 64Kbps Support EDGE Class 12/GPRS Class 12 Software Improved power-saving modes NDIS / USB driver: Windows XP / Vista / Windows 7 The RIL / NDIS / USB drier: Linux & Android & on WinCE Interface to the LGA 94PIN USB 2.0 full speed Sim card interface 1.8V/3.0V The SD the interface The Analog audio interface The interface the PCM 1.8V for the Digital audio The RF interface: antenna connector and antenna the pad Certification CCC / SRRC / MII / WHQL-/ RoHS / FCC / GCF / CB / CE / PTCRB
2.Control Via the AT Commands
3.Dimensions: 19.5mm * 36mm * 2.85mm
The MF206 specification: The basic characteristics of WCDMA / HSDPA 2100MHz GSM / GPRS / EDGE 850/900/1800/1900MHz Of WCDMA / HSDPA 2100MHz: +24 dBm (power class 3) The GSM / GPRS 850/900MHz: +33 dBm (power class 4) The GSM / GPRS 1800/1900MHz: +30 dBm (power class 1) EDGE, 850/900MHz: +27 dBm (power class E2) EDGE, 1800/1900MHz: +26 dBm (power class E2) GPRS: the Multi-the slot Class 10 EDGE: Multi-the slot Class 12 Power: Average 1.20W Maximum 2.20W Control Via the AT Commands Supply voltage: 3.4 ~ 4.2V Temperature range: Operation -30 to +85 ° C Storage -40 to +90 °C Humidity: 5% to 95% Dimensions: 19.5mm * 36mm * 2.85mm Weight: 4g Data of HSDPA: 3.6Mbps Of WCDMA the PS: DL: 384Kbps UL: 384Kbps Of WCDMA the CS: 64Kbps Support EDGE Class 12/GPRS Class 12 Software Improved power-saving modes NDIS / USB driver: Windows XP / Vista / Windows 7 The RIL / NDIS / USB drier: Linux & Android & on WinCE Interface to the LGA 94PIN USB 2.0 full speed Sim card interface 1.8V/3.0V The SD the interface The Analog audio interface The interface the PCM 1.8V for the Digital audio The RF interface: antenna connector and antenna the pad Certification CCC / SRRC / MII / WHQL-/ RoHS / FCC / GCF / CB / CE / PTCRB
