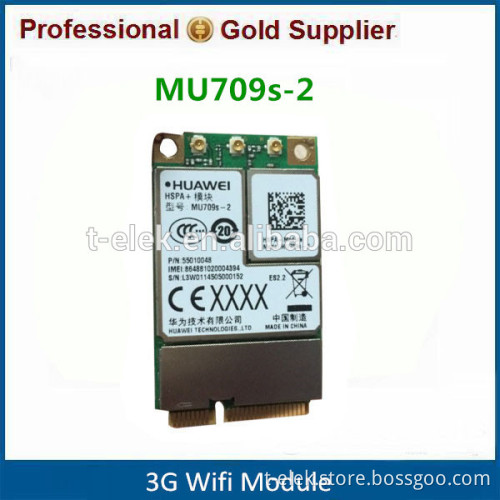

Huawei MU709s-2 3G HSPA+ module 21.6Mbps 3G module for European

       Huawei MU709s-2 3G HSPA+ module 21.6Mbps 3G module for European
Product Description   MU709 Mini PCIe is a variant of MU709 with standard Mini PCIe form factor. It is high-quality designed HSPA+ module which specially for industrial-grade M2M applications such as vehicle telematics, tracking, mobile payment, industrial router, safety monitor and industrial PDAs. MU709 Mini PCIe supports 21.6Mbps downlink data rate, providing data and voice service under global GSM/GPRS/EDGE/WCDMA/HSDPA/HSUPA/HSPA+ networks. The module also include enhanced features like embedded TCP/IP stack(IP,TCP,UDP,SSL, HTTP,FTP,SMTP), FOTA, Jamming Detection, Netscan, CMUX, SSL, eCall, Huawei enhanced AT commands, cell lock, network monitoring, DTMF decoder, baud rate adaptation, multi PDP, SIM swap, .etc. There are two variants which meet different market requirements: MU709s-2 Mini PCIe(UMTS/HSPA+ 900/2100MHz), for European, China market. MU709s-6 Mini PCIe(UMTS/HSPA+ 850/1900/2100 MHz), for Asia pacific, Latin America market.


Form Factor	Mini-PCIe
Bands	HSPA+/UMTS dual-band 900/2100 MHz GSM/GPRS quad-band 850/900/1800/1900 MHz
Data Transfer Rate	Downlink:21.6 Mbps, Uplink: 5.76 Mbps
Interface	2 Antenna connectors PCIe interface USB 2.0 High speed PCM Voice SIM Interface (1.8V/3.0V) Power supply Reset
Power Supply	3.0 V to 3.6 V (typical: 3.3 V)
Voice	PCM Voice
Temp Range	-40℃ to 85℃
Special Features	FOTA Firmware update via USB STK Jamming Detection Netscan CMUX SSL eCall
Operating System	Linux, Android

  Packaging & Shipping Packing : General packing or as customized package   Delivery time : About 2-5 days after receiving the deposit
