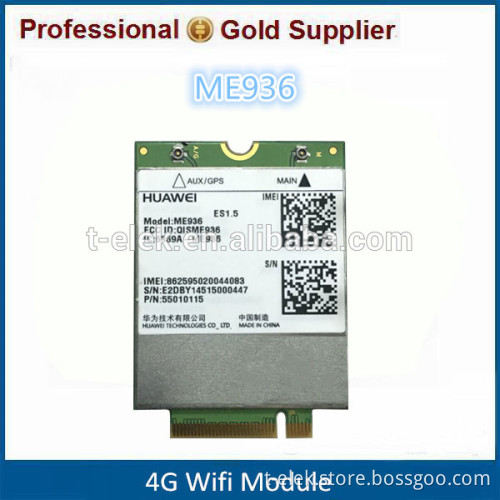

Huawei ME936 LTE NGFF module

                         Huawei ME936 LTE NGFF module
Product Description   The ME936 is a LTE module with NGFF interface , supporting LTE (FDD) B1/B2/B3/B4/B5/B7/B8/B13/B17/B20, Penta-band DC-HSPA+/HSPA+/HSPA/WCDMA for North America and Europe network coverage, low power consumption, Global Navigation Satellite System(GNSS), and North America and Europe carrier certifications, enabling easier and more flexible design and integration into end devices. In addition, the ME936 supports NGFF features to optimize performance, power consumption, and usability. ME936 is the ideal choice for Ultrabook, notebook, tablet etc.

Form Factor	M.2
Bands	LTE (FDD) B1/B2/B3/B4/B5/B7/B8/B13/B17/B20 Penta-band DC-HSPA+/HSPA+/HSPA/UMTS B1/B2/B4/B5/B8 Quad-band EDGE/ GPRS/GSM 1900/1800/900/850 MHz
Data Transfer Rate	WCDMA PS: UL (384 kbps)/ DL (384 kbps) DC-HSPA+ :UL (11 Mbps)/ DL (42 Mbps) LTE FDD: UL (50 Mbps)/ DL (100 Mbps) @Bandwidth 20M (CAT3) GPRS/EDGE: Multi-slot Class 12
Interface	Antenna interfaces x 2 M.2 Socket 2 USB 2.0 interface high speed Power supply UICC interface
Power Supply	Supply voltage range: 3.135V~4.4V (3.3 V recommended)
Voice	/
Temp Range	Normal operation: -10°C to +55°C Extended operation: -20°C to +70°C Storage: -40°C to +85°C
GPS/Glonass	GNSS: GPS Standalone, A-GPS, GPS XTRA, Glonass
Special Features	SIM Hotswap IPV6 BodySAR Ultrabook feature support(ACT, WiFi Offload , DPTF) USB LPM (Link Power Management) Tunable Antenna Supporting MO and MT Supporting formats of PDU Point-to-point and cell broadcast
Operating System	OS: Windows 7/8/Blue / Android 4.0 or above

    Packaging & Shipping Packing : General packing or as customized package   Delivery time : About 2-5 days after receiving the deposit
