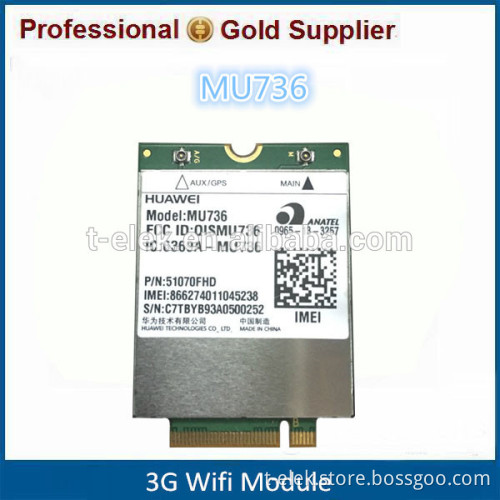

Huawei MU736 HSPA+ module NGFF interface GPS module

             Huawei MU736 HSPA+ module NGFF interface GPS module
Product Description   The MU736 is a HSPA+ module with NGFF interface, supporting Penta-band (B1/B2/B4/B5/B8) for worldwide network coverage, low power consumption, GPS, enabling easier and more flexible design and integration into end devices. In addition, the MU736 supports all NGFF features to optimize performance, power consumption, and usability.MU736 is an ideal choice for PC OEMs and ODMs to use in long battery life, thin form factor devices such as Ultrabooks and tablets requiring best in class cellular platform KPIs (e.g. performance, size, and current consumption).

Form Factor	M.2
Bands	Penta-band WCDMA/HSPA/HSPA+ : 2100/1900/900/850/AWS MHz Quad-band EDGE/ GPRS/GSM: 1900/1800/900/850 MHz
Data Transfer Rate	WCDMA PS: UL (384 kbps) / DL (384 kbps) UL/DL HSPA: UL (5.76 Mbps)/ DL (7.2 Mbps) UL/DL HSPA+: UL (5.76 Mbps)/ DL (21Mbps) GPRS/EDGE: Multi-slot Class 33, Class B
Interface	Antenna interfaces x 2 M.2 Socket 2 USB 2.0 interface high speed Power supply UICC interface
Power Supply	Supply voltage range: 3.135V~4.4V (3.3 V recommended)
Voice	/
Temp Range	Normal operation: - 10°C to +55°C Extended operation: -20°C to +70°C Storage: -40°C to +85°C
GPS/Glonass	GPS Standalone, A-GPS
Special Features	SIM Hotswap BodySAR Ultrabook feature support (ACT, WiFi Offload , DPTF) Tunable Antenna Supporting MO and MT Supporting formats of PDU Point-to-point and cell broadcast
Operating System	Windows 7 / Windows 8 / Android 4.0 or above

Packaging & Shipping Packing : General packing or as customized package   Delivery time : About 2-5 days after receiving the deposit
