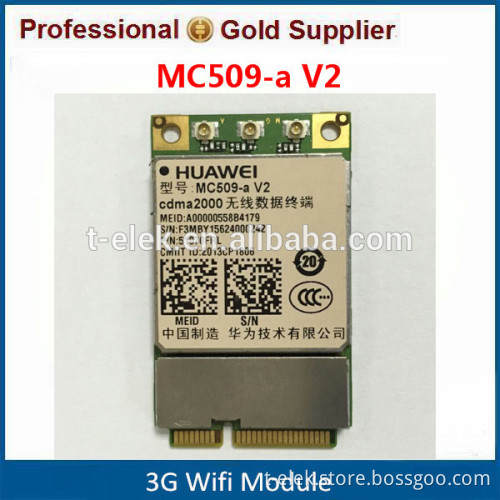

Huawei MC509 Mini PCIe module CDMA EVDO module

                          Huawei MC509 Mini PCIe module CDMA EVDO module
Product Description   MC509 Mini PCIe is a variant of MC509 with standard Mini PCIe form factor. It is high-quality designed CDMA EVDO module in small size and Huawei standard LGA form factor which specially for industrial-grade M2M applications such as vehicle telematics, tracking, mobile payment, industrial router, safety monitor and industrial PDAs.   There are four variants which meet different requirements:   MC509 Mini-PCIe 1X without GPS   MC509 Mini-PCIe 1X with GPS   MC509 Mini-PCIe EVDO without GPS   MC509 Mini-PCIe EVDO with GPS   MC509 EVDO supports 3.1Mbps downlink data rate, providing data and voice service under CDMA EVDO networks.

Form Factor	Mini-PCIe
Bands	EVDO Rev.A MC509 EVDO: dual-band 800/1900 MHz MC509 1X: dual-band 800/1900 MHz
Data Transfer Rate	Downlink:3.1 Mbps, Uplink: 1.8 Mbps
Interface	Antenna connector USB 2.0 full speed Control interfaces PCM Voice R-UIM Card (1.8V/3.0V) Power supply Reset
Power Supply	3.0 V to 3.6 V (3.3 V recommended)
Voice	PCM Voice
Temp Range	Normal Operation: -20℃ to 70℃ Extended Operation: -30℃ to 75℃
GPS/Glonass	GPS
Special Features	FOTA
Operating System	Linux, Android

Packaging & Shipping Packing : General packing or as customized package Delivery time : About 2-5 days after receiving the deposit
