Huawei ME209u-526 LTE Module industrial-grade M2M applications
  • Huawei ME209u-526 LTE Module industrial-grade M2M applications
Huawei ME209u-526 LTE Module industrial-grade M2M applications

Huawei ME209u-526 LTE Module industrial-grade M2M applications

Delivery Time:
2 Days
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: Guangdong, China (Mainland)
Product Description
Product Description
          Huawei ME209u-526 LTE Module industrial-grade M2M applications

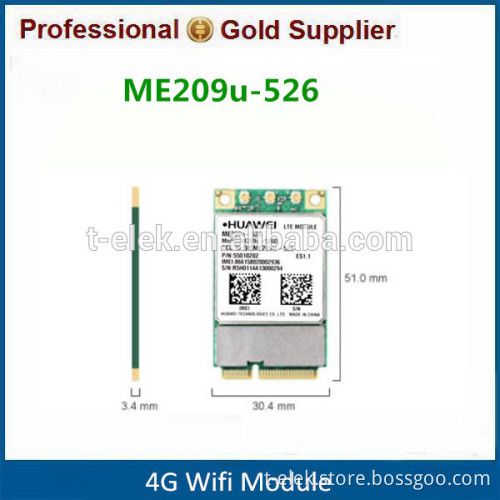

Product Description   ME209u-526 Mini PCIe is a variant of ME209u-526 with standard Mini PCIe form factor. It is high-quality designed LTE module which specially for industrial-grade M2M applications such as vehicle telematics, tracking, mobile payment, industrial router, safety monitor and industrial PDAs. ME209u-526 Mini PCIe supports 100Mbps downlink data rate, includes enhanced features like FOTA, USSD and Huawei enhanced AT commands.


Mini-PCIe

ME209u-526 Mini PCIe:

LTE (FDD) B4/B13

LTE FDD: Downlink:100 Mbps, Uplink: 50 Mbps @Bandwidth 20M (CAT3)

Antenna connector

PCIe interface

USB 2.0 High speed

PCM Voice

SIM Card

LED

Power Supply

Reset

3.0 V to 3.6 V (3.3 V recommended)

Normal Operation: -30℃ to 70℃

Extended Operation: -40℃ to 75℃

NA

CDC-ECM

Embedded UDP/TCP/IP/FTP/HTTP stack

FOTA

Firmware Update via USB

Linux, Android

  Packaging & Shipping Packing : General packing or as customized package   Delivery time : About 2-5 days after receiving the deposit
