Huawei MU609 Mini PCIe HSPA module 14.4Mbps DL speed

             Huawei MU609 Mini PCIe HSPA module 14.4Mbps DL speed

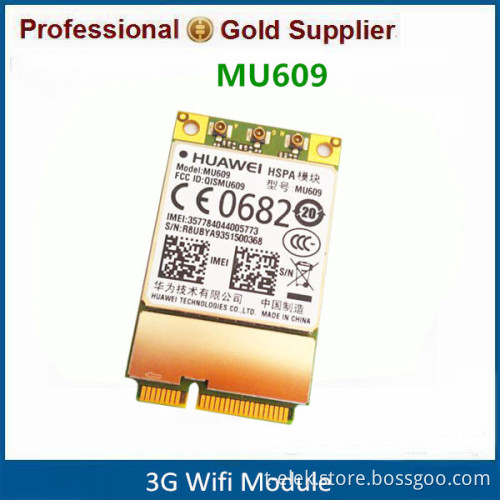

Product Description   MU609 Mini PCIe is a variant of MU609 with standard Mini PCIe form factor. It is high-quality designed HSPA module which specially for industrial-grade M2M applications such as vehicle telematics, tracking, mobile payment, industrial router, safety monitor and industrial PDAs. MU609 Mini PCIe supports 14.4Mbps downlink data rate, providing data and voice service under global GSM/GPRS/EDGE/WCDMA networks. The module also include enhanced features like embedded TCP/IP stack, FOTA, STK, and Huawei enhanced AT commands.

Form Factor	Mini-PCIe
Bands	HSPA+/UMTS quad-band 850/900/1900/2100 MHz GSM/GPRS quad-band 850/900/1800/1900 MHz
Data Transfer Rate	Downlink:14.4 Mbps, Uplink: 5.76 Mbps
Interface	3 Antenna connectors PCIe interface USB 2.0 High speed PCM Voice(AT&T version cannot support) SIM Interface (1.8V/3.0V) Power supply Reset
Power Supply	3.0 V to 3.6 V (typical: 3.3 V)
Voice	PCM Voice(AT&T version cannot support)
Temp Range	Normal Operation: -20℃ to 70℃ Extended Operation: -30℃ to 70℃
GPS/Glonass	GPS A-GPS
Special Features	FOTA STK
Operating System	Linux, Android

  Packaging & Shipping Packing : General packing or as customized package   Delivery time : About 2-5 days after receiving the deposit
