LTE 4G module MC7304 sierra wireless

Specifications 1 LTE B1 (2100), B3 (1800), B7 (2600), B8 (900), B20 (800)

2 Speed UL/DL 100/50 Mbps

3 mPCIe

4 Windows 7/8

5 Linux

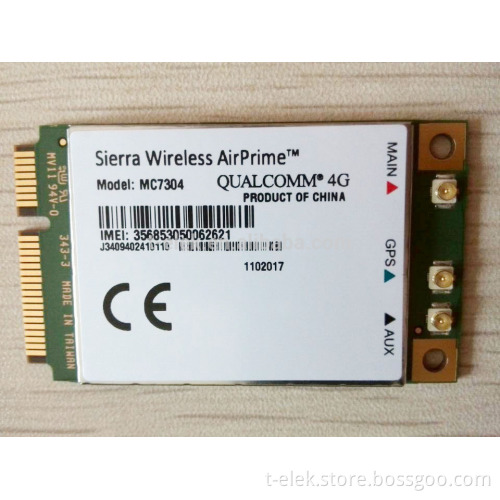

Sierra Wireless MC7304  The Sierra Wireless MC7304 PCI Express Mini Card is a compact, lightweight, wireless LTE- and UMTS-based modem, designed to be AT&T certified.

The MC7304 provides LTE, DC-HSPA+, HSDPA, HSUPA, WCDMA, GSM, GPRS, EDGE and GPS connectivity for networking and M2M applications over several radio frequency bands. The device also supports 2G/3G roaming- Supplier number SW_MC7304_DATA Category LTE Mini PCI Express

Keywords Sierra Wireless, MC7304, module, LTE Features LTE B1 (2100), B3 (1800), B7 (2600), B8 (900), B20 (800) Speed UL/DL 100/50 Mbps mPCIe Windows 7/8 Linux Android 4.0 and later MIMO USB 2.0 interface GPS & GLONASS PCM/I2S Attributes Voice features PCM/I2S OS Support Windows ® 7
Windows ® 8
Windows ® Mobile 6.5
Windows ® CE 6.0
Android
Linux Antenna Interface U.FL interface
50 Ohm Control Options Standard AT commands defined by 3GPP and Sierra Wireless extended AT commands. Speeds UL: 100 Mbps
DL: 50 Mbps
