NRF51822 BLE4.0 i7 eddystone beacon
- Delivery Time:
- 2 Days
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | Guangdong, China (Mainland) |
|---|
Product Description
Product Description
Product Description NRF51822 BLE4.0 i7 eddystone beacon > 1.5 years battery lifetime, 1000mAh CR2477 coin replaceable battery; > The transmission range up to 80 meters;(configurable by our app) > Waterproof, dustproof and shockproof suit for outdoor situation.
Parameters Compatibility - Supported iOS 7.0+ and Android 4.3+ system; Long Battery Lifetime and Battery Level - 18 months @ default settings; - battery replaceable; Mounting - 3M branded adhesive for direct mounting to wall; Configurable Parameters - UUID, Major, Minor, Device Name, Password etc. - Special Configuration APP; Long Range - The max. Range 100 meters in the open space; Security - 8 characters password(Lock/Unlock parameters); - AES HW encryption.
Product Shows

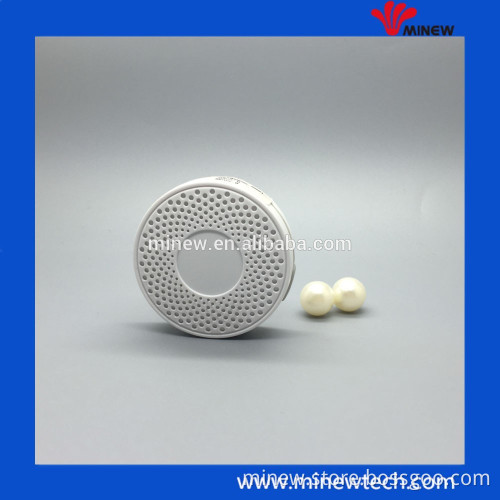

> The transmission range is 100 meters > The dimension: φ50×15mm
> Logo customizable, easy to print the logo on the center; MiniBeacon APP iBeacon Testing Support: > Download " BeaconCFG" from App Store or Download " iBeaconCFG " in Google Play.
> UUID, Major, Minor, Measured Power, Transimisson power, Password, Broadcasting Interval, Serial ID, iBeacon name, Connection Mode all could be configured by our special configuration app.
Similar Product
FAQ Do you provide the technical support to the developers? Re: SURE. The following technical data and documents will be provided to developers. 1. SDK 2. API 3. Demo APP 4. Configuration APP 5. Instructions Can I change the password? Re: Yes,you can change what you want to set. Do you have SDK or the source code? Re: Yes,we will provide you after sample was arrived. Does MiniBeacon comply with Apple's iBeacon standard? Re: Yes,MiniBeacon has been licensed by Apple ibeacon program with contact No.iBC-14-00582. Any other more questions,pls contact us to know more. Re: Skype: Juliet.Minew Certifications
Company Information Shenzhen Minew Technologies Co., Ltd is an ISO9001:2008 Management System Certified Manufacturer located in Shenzhen, China. Professional specialized in developing the Bluetooth iBeacon, Bluetooth modules, key-finder and other RF Technology-based creative products and technical services. > Welcome to visit our factory
NRF51822 BLE4.0 i7 eddystone beacon NRF51822 BLE4.0 i7 eddystone beacon NRF51822 BLE4.0 i7 eddystone beacon
Parameters Compatibility - Supported iOS 7.0+ and Android 4.3+ system; Long Battery Lifetime and Battery Level - 18 months @ default settings; - battery replaceable; Mounting - 3M branded adhesive for direct mounting to wall; Configurable Parameters - UUID, Major, Minor, Device Name, Password etc. - Special Configuration APP; Long Range - The max. Range 100 meters in the open space; Security - 8 characters password(Lock/Unlock parameters); - AES HW encryption. Item | Value | Remarks |
Chipset | nRF51822 | From Nordic |
Battery Model | 1000mAh CR2477 coin battery | 1pc x 3.7V |
Operation Voltage | 1.8-3.9V | DC |
Transmission Circuit | 4.5mA(Max.) | Tested at 0dBm transmission power |
Transmission Range | 100 meters | Maximum |
Antenna | 50ohm | On board / PCB Antenna |
Accessories | Double Adhesive | 1pc, high-strength, 3M brand |
Net Weight | 26.0g | With battery but without package |
Size | 50 x 50 x15 mm | Null |
Case Available | White | Other colors could be customized |
> The transmission range is 100 meters > The dimension: φ50×15mm
> Logo customizable, easy to print the logo on the center; MiniBeacon APP iBeacon Testing Support: > Download " BeaconCFG" from App Store or Download " iBeaconCFG " in Google Play.
> UUID, Major, Minor, Measured Power, Transimisson power, Password, Broadcasting Interval, Serial ID, iBeacon name, Connection Mode all could be configured by our special configuration app.
Similar Product
FAQ Do you provide the technical support to the developers? Re: SURE. The following technical data and documents will be provided to developers. 1. SDK 2. API 3. Demo APP 4. Configuration APP 5. Instructions Can I change the password? Re: Yes,you can change what you want to set. Do you have SDK or the source code? Re: Yes,we will provide you after sample was arrived. Does MiniBeacon comply with Apple's iBeacon standard? Re: Yes,MiniBeacon has been licensed by Apple ibeacon program with contact No.iBC-14-00582. Any other more questions,pls contact us to know more. Re: Skype: Juliet.Minew Certifications
Company Information Shenzhen Minew Technologies Co., Ltd is an ISO9001:2008 Management System Certified Manufacturer located in Shenzhen, China. Professional specialized in developing the Bluetooth iBeacon, Bluetooth modules, key-finder and other RF Technology-based creative products and technical services. > Welcome to visit our factory
NRF51822 BLE4.0 i7 eddystone beacon NRF51822 BLE4.0 i7 eddystone beacon NRF51822 BLE4.0 i7 eddystone beacon
