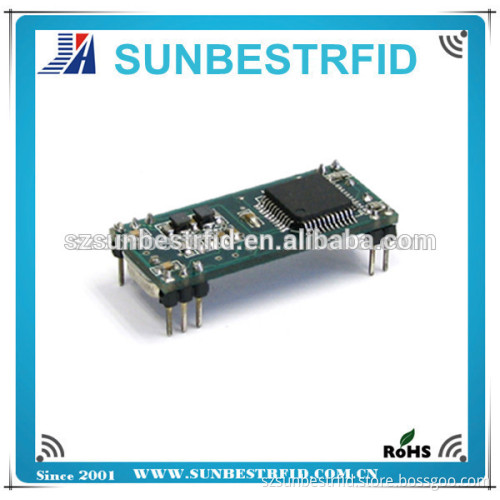

RFID 13.56Mhz reader module Support ISO14443A-YLMF16

13.56Mhz reader module support ISO14443A- YLMF16 1. Mi-fare Standard 1024 bytes EEPROM, divided into 16 sectors with 64 bytes on each sector 100,000 write endurance cycles 10 years data retention ISO 14443 A 13.56MHz transponder frequency 106 kbit baud rate Bit-wise anti-collision Up to 10 cm operating distance 4 byte unique serial number Random number generator 2 bytes access key per sector Individual access condition for each sector Purse functionality 2. Technical Specification Power supply: 5V, 80-100mA Interface: 232 TTL Transmission speed: 19200 bps R/W distance of up to 60mm (up to 100mm with bigger antenna size), depending on TAG Storage temperature: -40 ºC ~ +85 ºC Operating temperature: 0 ºC ~ +70 ºC      3. Communication setting The communication protocol is byte oriented. Both sending and receiving bytes are in hexadecimal format. The communication parameters are as follows, Baud rate:              19200 bps Data:                     8 bits Stop:                     1 bit Parity:                   None Flow control:  None1
