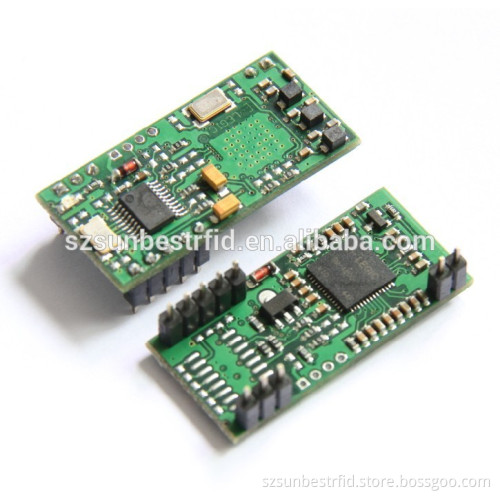

RFID 13.56Mhz reader module special for Legic card

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China (Mainland)

Product Description

function declaration 1)Basic function

Command list
Command	name		Describe
Globle Commands
0x25	PassiveSearch		Passive card ( need to send commands to the module, module performs the card command )
0x40	AutoSearch		Automatic search card
0x41	Stop_AutoSearch		The end of automatic search card, waiting for the next command
0x42	Type_Limit		Card type restrictions (including automatic and passive )
Legic Appilication Commands
0x48		Set_AuthorizationKey	Used to set the authorization code and password (up to 8 )
0x49		Set_LaunchData	Used to set the authorization code and password (up to 8 )
0x4A		Read_LaunchData	Used to read can use authorization cod
0x4B		Clr_LaunchData	Used to remove the authorization code
0x4C	Legic_commond_packet		LegicCommand packet
System command (0x80~0xFF)
0x80		SetAddress	Set module address
0x81		SetBaudrate	Set baud rate
0x82		SetSerlNum	Set block sequence number
0x83		GetSerlNum	The read module serial number
0x86		Get_VersionNum	Used to read module version information

(Refer to appendix RDM600 LEGIC module communication protocol)
