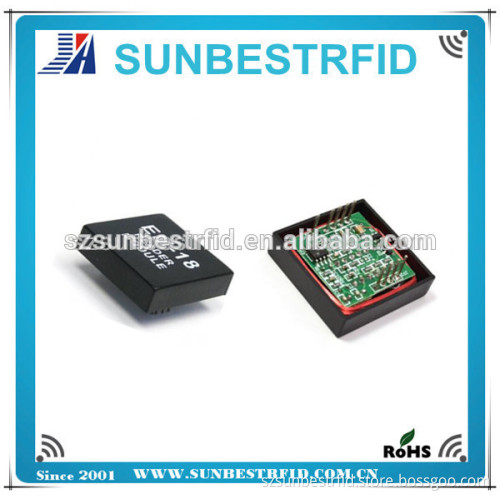

125KHZ RFID Read only Proximity ID Card Reader module EM-18
- Delivery Time:
- 3 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Guangdong, China (Mainland) |
|---|
Product Name: EM18 | ||
1 | VCC | 5V |
2 | GND | GND |
3 | BEEP | BEEP AND LED |
4 | ANT | NO USE |
5 | ANT | NO USE |
6 | SEL | HIGH IS RS232,LOW IS WEIGAND |
7 | TTL232 | TTL232 |
8 | D1 | WEIGAND DATA 1 |
9 | D0 | WEIGAND DATA 0 |
Specification | ||
Dimension | 25mm*25mm*6mm, 32*32*8mm, | |
Read Distance | 8cm | |
Frequency | 125KHZ | |
Card Format | EM4100 or Compatible | |
Output | RS232 and WG26 | |
Encoding | Manchester 64 bit, modulus 64 | |
Power Requirement | ||
Voltage Supply Range | +4.6V through +5.4V | |
