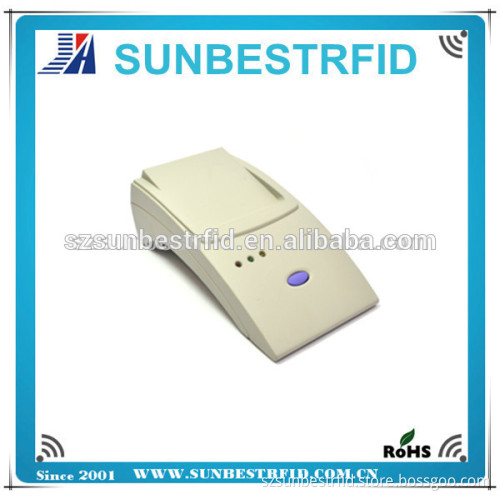

125Khz Temic card reader /writer--TM9925

Brief Description

1)   T5567/5577 125KHz R/Writer system includes the following:

  .T5567/5577 R/Writer Unit.

  .RS-232 cable for PC connection.

  .Transformer power supply with DC 12V .

2)   Following diagram illustrates the main connections of different components

EM FORMART USER MENU

1) on Format user menu, press the EM-Format button

2) In EM FORMART interface, type the number you want in the Card Number,     then press the Write and a T5567/5577 Card is OK.

   * If Write success, displays “Write success!”;

   * If Write Fail, displays “Fail!”;

   * If no Card, displays “No Card!”.

3)   Press Clear, clear the card number.

4)   Press read, read the T5567/5577 Card or EM Card.

   * If read the card is fail, displays “Fail!”;

   * If no Card, displays “Timeout!”;

5)   Press COM , select COM1 or COM2.

6)   If select Add, Number of card can add one while write card .

   * If select Sub, Number of card can subtract one while write card.

   * If select “TXT File”, Writer can write card number in the text file one by one.
