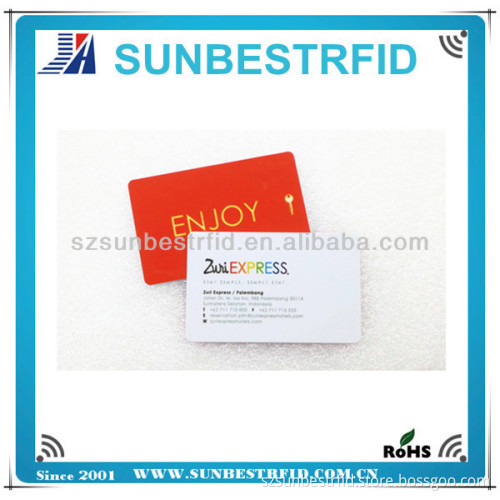

writable rfid 1k card rfid student card
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Guangdong, China (Mainland), Guangdong, China (Mainland) |
|---|
Product Name RFID ISO Card | |
Model Number | RFID ISO Card |
Country of origin | China |
Certification | RoHs |
MOQ | 1000pcs |
Packaging Details | Standard exporting package |
Delivery Time | 7 ~ 10 days for 3000pcs |
Payment Terms | T/T , Paypal , Western Union |
Supply Ability | 100000pcs/month |
Specification | |
Material | PVC |
Antenna | Copper coil |
Magnetic stripe Coercivity | 650oe(JIS). 300oe(LoCo), 2750oe(HiCo) |
Frequency | 125Khz,13.56Mhz,UHF(902-920)Mhz |
Supported Standard | ISO 11786, ISO14443A, ISO15693 |
Chip available | EM4102/GK4001 |
Protection class | IP 68(condition : water pressure 45bar,10h) |
Read distance | within 20cm(this is dependent on antenna geometry) |
Storage Temp | -20 to 50’C |
Operation Temp | -20 to 50’C |
Surface Finish | Gloss/Matt |
Jis Magnetic stripe | Ext edge A 6.4mm(max). Int edge B 11.6MM(min.) |
Coercivity(oersteds) 650oe | |
Other Magnetic stripe: | Ext edge A 5.54mm(max). Int edge C 15.8mm(min.) |
Coercivity(oersteds)300oe(LoCo), 2750oe(Hico). | |
Size | |
Dimension | 86*54*1.8mm,86*54*0.8mm (±0.04mm) |
Thickness | 0.8mm/1.8mm |
Product Description | |
1)Customized Logo,color,figure | |
2)the chip can be low frequency 125kHz , or high frequency 13.56MHz | |
Application | |
Door Access Control, Burglar Prevention, Patrol Management, Personal Identification, | |
Car Park Control, Member Club Management, etc | |
