2016 new RFID microchip reader 134.2Khz animal reader YLT280

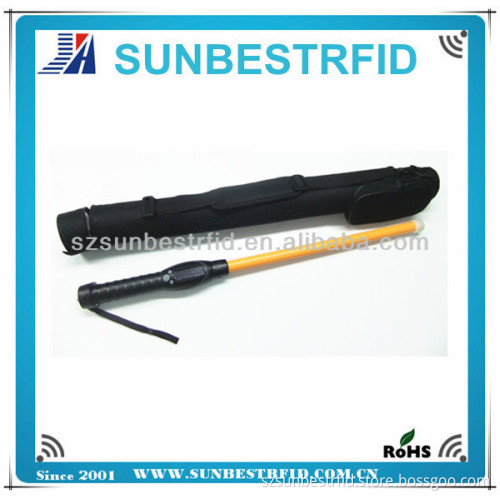

  RFID Animal Stick Reader YLT-280

Product Name Handheld Animal Stick Reader YLT-280
Model Number	YLT-280
Specification
Frequency	134.2KHz
Reading distance	17cm for FDX-B chips;22cm for HDX chips
Chip Types	FDX-B, HDX, ID64
Store Temperature	-30°C-65°C
Operating Temperature	-30°C-50°C
Continuous working period	12 Hours
Communication method	Bluetooth, RS232
Battery	AA*4pcs
Output	RS232 and WG26
Power supply	5V DC 35mA
Range of power supply	+4.6V to +5.4V
Keyboard	3 key
Color	Yellow and black
Screen	128*32 OLED
Size
Dimension	80X12X12cm
Weight	2.5kg

The YLT280 Series Stick Reader is an extremely rugged hand-held passive transponder reading device is according to the world increasing demand for the informationization of the animal husbandry management.   It provides cable-free operation through its internal rechargeable battery pack. It is compatible with the technical specifications of ISO Standards 11784 and 11785, including both FDX-B and HDX technologies.   The YLT280 Series Stick Reader provides the basic RFID reader functions of reading, storing, displaying, and transmitting via RS232 or USB or Bluetooth wireless technology module, the identification code contained within passive transponder for real time and batch mode data logging.   It can be widely used in the management of breeding stock, dairy stock, fatstock and animal butchering, to trace the individual identification.   With its mature, stable and unique design, it realizes an identification tracing method with no contact and no interference. Ultimately it guarantees the ID’s individuality and authenticity.
