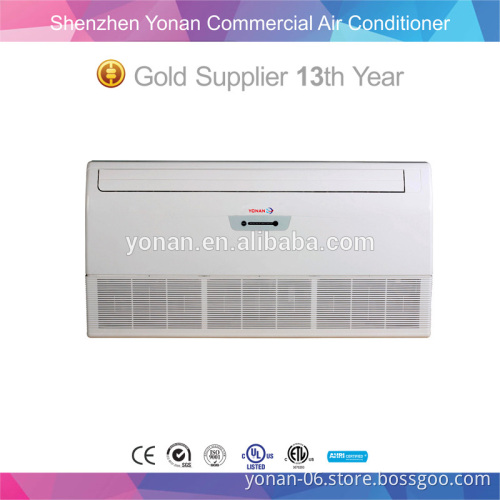

Floor & Ceiling Air Conditioner Brazil Energy Class

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Guangdong, China (Mainland)

Product Description

Floor & Ceiling Air Conditioner Brazil Energy Class Parameter

Cooling	Capacity	Btu/h	36000
	Input	W	3580
	EER	W/W	2.95
Heating	Capacity	Btu/h	40000
	Input	W	3760
	COP	W/W	3.12
Indoor coil	Number of rows		5
	Tube pitch(a)x row pitch(b)	mm	21×13.37
	Fin spacing	mm	1.4
	Fin type		Hydrophilic aluminium
	Tube outside dia.and type	mm	Φ7,Inner grooved tube
	Coil length x height x width	mm	1078×252×66.85
	Number of circuits		5
Indoor air flow(Hi/Med/Lo)		m³/h	1477/1400/1293
Indoor noise level (sound pressure)(Hi/Med/Lo)		dB(A)	54/52/50
Throttle type			Throttle valve
Indoor unit	Dimension (WxDxH)	mm	1280×660×203
	Packing (WxDxH)	mm	1380x745x297
	Net/Gross weight	kg	35/40
Design pressure		MPa	2.6/1.0
Drainage water pipe diameter		mm	ODΦ25
Refrigerant piping	Liquid side/Gas side	mm	Φ9.52/Φ19(3/8"/3/4")
Controller			RG51Q1/BGE
Operation temperature	Cooling	°C	17~32
Operation temperature	Heating	°C	0~30
