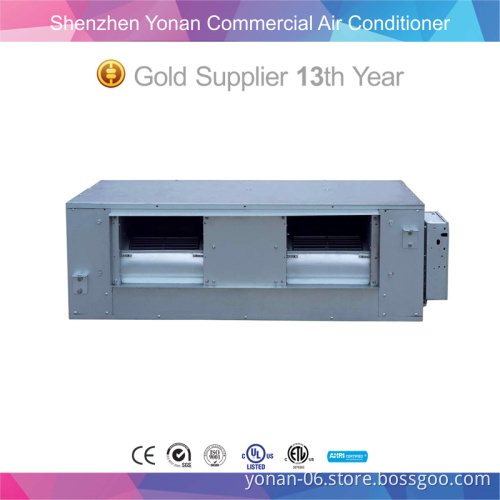

T3 Cooling Only 36000Btu Ducted Split Air Conditioner

T3 Cooling Only 36000Btu Ducted Split Air Conditioner       Feature
1.High efficiency with R410A refrigerant and optimized design.
2.Intelligent design for easy maintenance of whole unit and replacing filter.
3.Special design for cold winter and strong heating in super low temperature .
4.Smart design enable free electric box installation for both sides of the unit at the spot.
5.Two kinds of air pressure can be selected at the installation spot.
6.With advanced fresh air function keep our life more healthy.    Specification

Indoor Unit
Power supply		V- Ph-Hz	380-420-3-50
Cooling	Capacity	Btu/h	36000
	Input	W	4038
	EER	W/W	2.60
Heating	Capacity	Btu/h	/
	Input	W	/
	COP	W/W	/
Indoor fan motor	Model		YDK200-4F
	Qty		1
	Input	W	500/400/345
	Capacitor	uF/ V	15uF/370-450V
	Speed (Hi/Mid/Lo)	r/min	1060/900/820
Indoor coil	Number of rows		3
	Tube pitch(a)×row pitch(b)	mm	25.4x22
	Fin spacing	mm	1.6
	Fin type		Hydrophilic aluminium
	Tube outside diameter .and type	mm	Φ9.5,inner groove tube
	Coil length×height×width	mm	700x355.6x66
	Number of circuits		7
Indoor air flow (Hi/Med/Lo)		m3/h	2200/2088/1715
Indoor external static pressure (Hi)		Pa	150
Indoor noise level (Hi/Med/Lo)		dB(A)	54/52/50
Throttle type			Throttle valve
Indoor unit	Dimension (W×D×H)	mm	856x691x400
	Packing (W×D×H)	mm	1090x768x440
	Net/Gross weight	kg	50/56
Design pressure		MPa	2.94/1.0
Drainage water pipe dia			ODφ25
Refrigerant piping	Liquid side/ Gas side	mm	φ9.52/φ19
Controller			KJR-10B/DP(T)-E
Operation temperature		℃	17-30
Outdoor Unit
Power supply		V- Ph-Hz	380~420-3-50
Max. input consumption		W	5800
Max. input current		A	10
Compressor	Model		C-SB303H8A
	Type		Scroll
	Brand		Sanyo
	Capacity	Btu/h	39579
	Input	W	3800
	Rated current (RLA)	A	6.8
	Locked rotor Amp(LRA)	A	42-45
	Thermal protector position		Internal
	Capacitor	uF	---
	Refrigerant oil	ml	1700
Outdoor fan motor	Model		YDK75-6C
	Qty		1
	Input	W	162
	Capacitor	uF	5UF/450V
	Speed	r/min	860
Outdoor coil	Number of rows		2
	Tube pitch(a) × row pitch(b)	mm	22x19.05
	Fin spacing	mm	1.6
	Fin type		Hydrophilic aluminium
	Tube outside dia. and type	mm	Φ8,inner grooved tube
	Coil length×height×width	mm	766×792×38.1
	Number of circuits		6
Outdoor air flow		m3/h	4800
Outdoor noise level		dB(A)	58
Throttle type			/
Outdoor unit	Dimension (W×D×H)	mm	895x313x862
	Packing  (W×D×H)	mm	1043x395x915
	Net/ Gross weight	kg	79/84
Refrigerant type/Quantity	Type		R22
	Charged volume	kg	2
Design pressure		MPa	2.94/1.0
Refrigerant piping	Liquid side/ Gas side	mm	φ9.5/φ19
	Max. pipe length	m	30(Outdoor unit down)
			30(Outdoor unit up)
	Max. difference in level	m	20(Outdoor unit down)
			25(Outdoor unit up)
Ambient temp (Cooling/Heating)		℃	17~54
