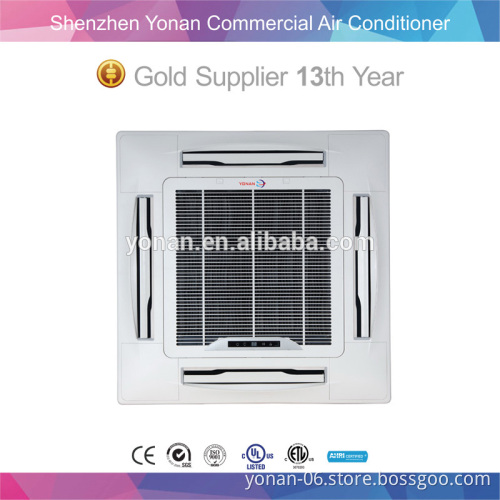

R410a Gas 24000 Btu Inverter Cassette Type Air Conditioner

R410a Gas 24000 Btu Inverter Cassette Type Air Conditioner       Feature 1. Heat exchanger adopting Aluminum Foil/Inner Copper tube, high efficiency.
2. High control technology, long distance air supply.
3. Large airflow, low noise due to large diameter scroll fan.
4. Famous brand water pump discharge condensing water, to raise water height as high as 750mm.
5. Touchable electric contactor controls the water level. When the condensing water height in the fan coil is beyond the fixed height, the unit will stop running.
6. Adjust temperature exactly, the difference within ±1°C,using delicate resistance temperature sensor.
7. High efficiency sterilization filter screen to ensure the healthy new air cycle air.
8. Fresh air opening can introduce part of outdoor fresh air, to keep the indoor air quality
  Specification

Pdesignc		kW	7.1
SEER		W/W	6.2
Energy Efficiency Class			A++
Pdesignh		kW	7.8
SCOP		W/W	3.7
Energy Efficiency Class			A
Tbiv		℃	-7
Tol		℃	-15
Power supply		V-ph-Hz	220~240-1-50
Cooling	Capacity	Btu/h	24000
	Input	W	2190
	Current	A	10.02
	EER	W/W	3.21
Heating	Capacity	Btu/h	26000
	Input	W	2110
	Current	A	9.66
	COP	W/W	3.61
Indoor fan motor	Model		WZDK42-38G
	Qty		1
	Output	w	42
	Capacitor	uF	/
	Speed(hi/mi/lo)	r/min	600/520/450
Indoor coil	a.Number of rows		2
	b.Tube pitch(a)x row pitch(b)	mm	21x13.37
	c.Fin spacing	mm	1
	d.Fin type (code)		Hydrophilic aluminium
	e.Tube outside dia.and type	mm	Φ7,inner grooved tube
	f.Coil length x height x width	mm	2010x168x26.74
	g.Number of circuits		8
Indoor air flow (Hi/Mi/Lo)		m3/h	1250/1050/900
Indoor sound pressure level (Hi)		dB(A)	49/44/39
Indoor sound power level (Hi)		dB(A)	59
Indoor unit	Dimension (W  x Dx H)(body)	mm	840x840x205
	Packing   (W  x Dx H)(body)	mm	900x900x225
	Dimension (W  x Dx H)(panel)	mm	950x950x55
	Packing  (W  x Dx H)(panel)	mm	1035x1035x90
	Net/Gross weight(body)	kg	22/26
	Net/Gross weight	kg	5/8
Design pressure		MPa	4.2/1.5
Drainage water pipe dia.		mm	ODΦ32
Refrigerant piping	Liquid side/ Gas side	mm	Φ9.52/Φ15.9(3/8"/5/8")
			RG51C/E
Operation temperature	Cooling	℃	≥17
	Heating	℃	≤30
