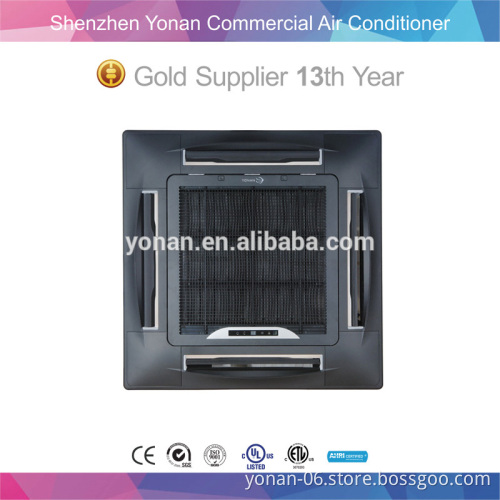

18000Btu Cooling Only Ceiling Cassette Type Air Conditioner

18000Btu Cooling Only Ceiling Cassette Type Air Conditioner       Feature
1.   Lifting easy-clean
2.   Touch screen wired controller
3.   Twin combination
4.   Reserved remote on-off and alarm ports
5.   Automatic defrosting
6.   Automatic restart function
7.   Anti-cold air function
8.   Led display
9.   Sleep mode
10. Independent dehumidification     Specification

Pdesignc		kW	5.3
SEER		W/W	5.6
Energy Efficiency Class			A+
Pdesignh		kW	5.3
SCOP		W/W	3.4
Energy Efficiency Class			A
Tbiv		℃	-5
Tol		℃	-15
Power supply		V-ph-Hz	220~240-1-50
Cooling	Capacity	Btu/h	18000
	Input	W	1570
	Current	A	7.19
	EER	W/W	3.36
Heating	Capacity	Btu/h	18000
	Input	W	1420
	Current	A	6.50
	COP	W/W	3.72
Indoor fan motor	Model		WZDK42-38G
	Qty		1
	Output	w	42
	Capacitor	uF	/
	Speed(hi/mi/lo)	r/min	580/500/400
Indoor coil	a.Number of rows		2
	b.Tube pitch(a)x row pitch(b)	mm	21x13.37
	c.Fin spacing	mm	1
	d.Fin type (code)		Hydrophilic aluminium
	e.Tube outside dia.and type	mm	Φ7,inner grooved tube
	f.Coil length x height x width	mm	2010x168x26.74
	g.Number of circuits		8
Indoor air flow (Hi/Mi/Lo)		m3/h	1250/950/800
Indoor sound pressure level (Hi)		dB(A)	48/44/38
Indoor sound power level (Hi)		dB(A)	58
Indoor unit	Dimension (W  x Dx H)(body)	mm	840x840x205
	Packing   (W  x Dx H)(body)	mm	900x900x225
	Dimension (W  x Dx H)(panel)	mm	950x950x55
	Packing  (W  x Dx H)(panel)	mm	1035x1035x90
	Net/Gross weight(body)	kg	22/25
	Net/Gross weight	kg	5/8
Design pressure		MPa	4.2/1.5
Drainage water pipe dia.		mm	ODΦ32
Refrigerant piping	Liquid side/ Gas side	mm	Φ6.35/Φ12.7(1/4"/1/2")
			RG51C/E
Operation temperature	Cooling	℃	≥17
	Heating	℃	≤30
