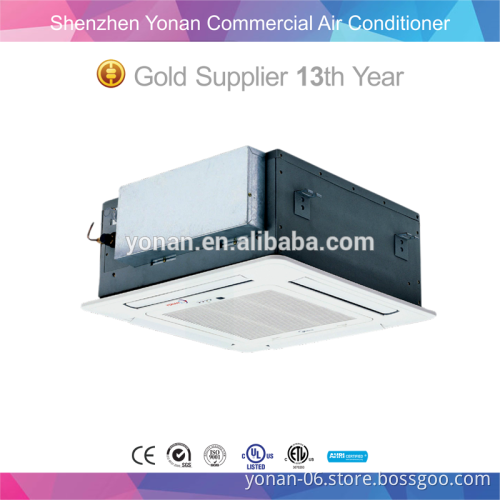

Ceiling Cassette Air Conditioner R22 or R410a 60000Btu Cooling And Heating

Ceiling Cassette Air Conditioner R22 or R410a 60000Btu Cooling And Heating         Feature 1.   High efficiency with R410a refrigerant, the known brand compressor
2.   Intelligent design for easy maintenance of whole unit and replacing filter
3.   Wide angle of air flow, auto swing assure the comfortable feeling
4.   Low gas level detection functio
5.   Defrost control delivers powerful heating in extremely cold climates     Specification

Power supply		V-ph-Hz	380~420-3-50
Cooling	Capacity	Btu/h	60000
	Input	W	6130
	Current	A	10.58
	EER	W/W	2.63
Heating	Capacity	Btu/h	60000
	Input	W	5920
	Current	A	10.22
	COP	W/W	2.97
Indoor fan motor	Model		YDK90-6E
	Qty		1
	Input	w	143/116/100
	Capacitor	uF	3.5UF/450V
	Speed(hi/mi/lo)	r/min	770/640/550
Indoor coil	a.Number of rows		3
	b.Tube pitch(a)x row pitch(b)	mm	21x13.37
	c.Fin spacing	mm	1.5
	d.Fin type (code)		Hydrophilic aluminium
	e.Tube outside dia.and type	mm	Φ7, inner groove tube
	f.Coil length x height x width	mm	2080x252x40.11
	g.Number of circuits		12
Indoor air flow (Hi/Med/Lo)		m3/h	1800/1480/1280
Sound level  (sound pressure)		dB(A)	51/47/42
Throttle type			/
Indoor unit	Dimension (W  x Dx H)(body)	mm	840x840x300
	Packing   (W  x Dx H)(body)	mm	900x900x320
	Dimension (W  x Dx H)(panel)	mm	950x950x55
	Packing  (W  x Dx H)(panel)	mm	1035x1035x90
	Net/Gross weight(body)	kg	32/36
	Net/Gross weight	kg	5/8
Design pressure		MPa	4.2/1.5
Drainage water pipe dia.		mm	ODΦ32
Refrigerant piping	Liquid side/ Gas side	mm	Φ9.52/Φ19(3/8"/3/4")
Controller			RG51Q1/BGE
Operation temperature	Cooling	℃	17~32
	Heating	℃	0~30
