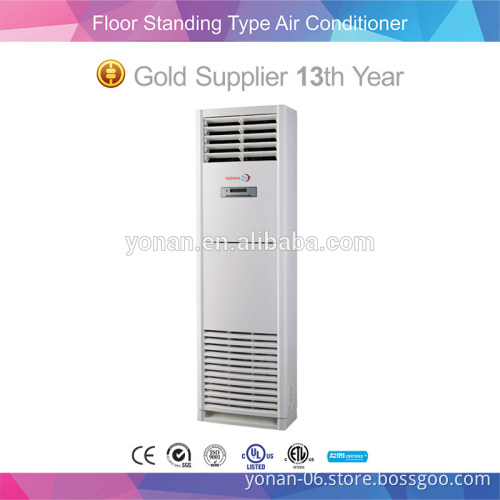

Europe DC Inverter Floor Standing air conditioner

Get Latest Price

Delivery Time:: 50 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China (Mainland)

Product Description

Model			KFR-24LW/BP 24000BTU	KFR-36LW/BP 36000BTU
Power supply		Ph-V-Hz	220-240V~ 50Hz 1Ph	380-420V~ 50Hz 3Ph
Cooling	Capacity	Btu/h	24000	36000
	Input	W	2200	2920
	Rated current	A	10.6	5.03
	EER	W/W	3.20	3.21
Heating	Capacity	Btu/h	26000+7000	38000+12000
	Input	W	2100	3080
	Rated current	A	10.1	5.30
	COP	W/W	3.6	3.61
Moisture Removal		L/h	2.6	3.8
Max. input consumption		W	3000	5000
Max. current		A	13.5	14.0
Starting current		A	----	----
Compressor	Model		DA150S1C-20FZ	TNB306FPNMC-L
	Type		ROTARY	ROTARY
	Brand		GMCC	MITSUBISHI
	Capacity	Btu/h	15286	33711
Indoor fan motor	Model		YDK72-10R	YDK120-8N
	Brand		Welling	Welling
	Input	W	150/123	300/240
	Capacitor	uF	3.5	6.5
	Speed(Hi/Mi/Lo)	r/min	515 / -- / 425	580 / -- / 480
Indoor coil	a.Number of rows		2	2
	b.Tube pitch(a)x row pitch(b)	mm	25.4x22	25.4x22
	c.Fin spacing	mm	1.3	1.3
	d.Fin type (code)		Hydrophilic aluminium	Hydrophilic aluminium
	e.Tube outside dia.and type	mm	9.52,innergroove tube	9.52,innergroove tube
	f.Coil length x height x width	mm	402x737x44	422x965x44
	g.Number of circuits		3	6 / 6
Indoor air flow (Hi/Mi/Lo)		m3/h	1000/830	1700/1400
Indoor noise level (Hi/Mi/Lo)		dB(A)	51/47(51.8/47.0;51.3/46.0)	56/52(57.9/53.0;57.5/52.4)
Indoor unit	Dimension(WDH)	mm	510x240x1695	550x350x1800
	Packing (WDH)	mm	1860x625x375	1910x685x540
	Net/Gross weight	Kg	35 / 48	53 / 70
Outdoor fan motor	Model		YDK55-6G	YDK190-6C(B)
	Brand		Broad-ocean	Welling
	Input	W	103/78	290/168
	Capacitor	uF	2.5	10.0
	Speed	r/min	865 / -- / 670	850 / -- / --
Outdoor coil	a.Number of rows		2.5	2
	b.Tube pitch(a)x row pitch(b)	mm	21x13.37	22x19.05
	c.Fin spacing	mm	1.4	1.5
	d.Fin type (code)		Hydrophilic aluminium	Hydrophilic aluminium
	e.Tube outside dia.and type	mm	7,innergroove tube	7.94, innergroove tube
	f.Coil length x height x width	mm	779x651x26.74+390x651x13.37	885x902x38.1
	g.Number of circuits		6	4
Outdoor air flow		m3/h	2700	3800
Outdoor noise level		dB(A)	56(56.0)	62(62.9)
Outdoor unit	Dimension(WDH)	mm	845x320x700	990x345x965
	Packing (WDH)	mm	965x395x755	1120x435x1100
	Net/Gross weight	Kg	53/56	79 / 91
Refrigerant type		g	R410A/2100g	R410A/2600g
Design pressure		MPa	4.2/1.5	4.2/1.5
Refrigerant piping	Liquid side/ Gas side	mm(inch)	9.52/15.9(3/8"/5/8")	9.52/15.9(3/8"/5/8")
	Max. refrigerant pipe length	m	25	25
	Max. difference in level	m	10	10
Thermostat type			Remote Control	Remote Control
Operation temperature	Indoor(cooling/ heating)	℃	≥17/≤30	≥17/≤30
	Outdoor(cooling/heating)	℃	-15~50/-15~24	-15~50/-15~24
Application area		m2	35-58	55-88
Qty’per 20’ /40’ /40'HQ			36/78/91	19/43/50
