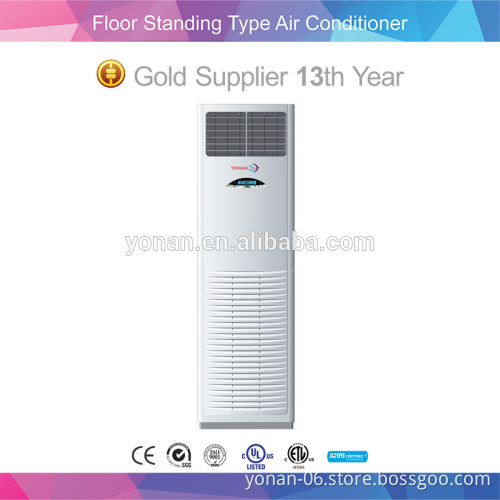

60Hz T3 2 Ton Floor Standing Type Air Conditioner Floor Standing

60Hz T3 2 Ton Floor Standing Type Air Conditioner Floor Standing       Feature
1.  2 ton floor standing air conditioner
2.   World famous brand rotary type compressor
3.   High efficient internal thread copper pipe for condensor and evaporator
4.   Led digital displa, best quality
5.   Low voltage starup
6.   Auto protection     Specification

Power supply		Ph-V-Hz	1Ph, 220-230V~, 60Hz
Cooling	Capacity	Btu/h	24000
	Input	W	2700
	Rated current	A	13.0
	EER	W/W	2.61
Heating	Capacity	Btu/h	27000
	Input	W	2800
	Rated current	A	13.0
	COP	W/W	2.83
Moisture Removal		L/h	2.6
Max. input consumption		W	4150
Max. current		A	22.0
Starting current		A	66.51
Compressor	Model		PH370X3C-3KTS1
	Type		ROTARY
	Brand		GMCC
	Capacity	Btu/h	26801/27040
	Input	W	2605/2740
	Rated current(RLA)	A	12.70/12.75
	Locked rotor Amp(LRA)	A	66.51
	Thermal protector		UP14SE5115
	Thermal protector position		INTERNAL
	Capacitor	uF	55
	Refrigerant oil/oil charge	ml	SUNISO 4GSD/ATMOS NM56EP/750
Refrigerant type		g	R22/2400g
Design pressure		MPa	2.6/1.0
Refrigerant piping	Liquid side/ Gas side	mm(inch)	φ9.52/φ16.0(3/8"/5/8")
	Max. refrigerant pipe length	m	20
	Max. difference in level	m	10
Connection wiring			NO
Plug type			NO
Thermostat type			Remote control
Operation temp		℃	17-30
Ambient temp (cooling/heating)		℃	18-54/-7-24
Application area		m2	35-58
Qty’per 20’ /40’ /40'HQ			33/73/83
