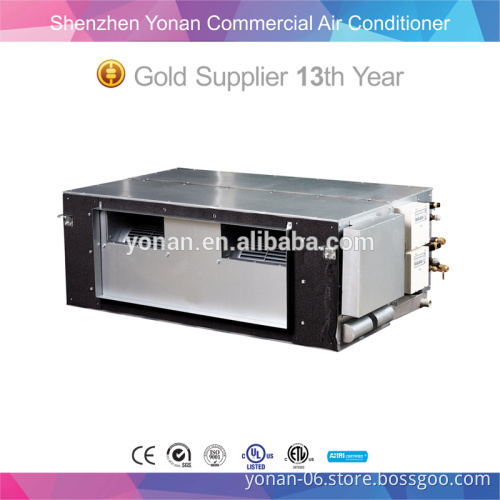

High Static Duct Type T1 And T3 Air Conditioner

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Guangdong, China (Mainland)

Product Description

High Static Duct Type T1 And T3 Air Conditioner

Power supply		V- Ph-Hz	220~240-1-50	380-3-50
Max. input consumption		W	4330	4610
Compressor	Model		ZR47K3-PFJ-522	C-SB303H8A
	Type		Scroll	Scroll
	Brand		Copeland	Sanyo
	Capacity	Btu/h	39000	39579
	Input	W	3510	3800
	Rated current (RLA)	A	16.8	6.8
	Thermal protector		Internal	Internal
	Capacitor	uF	60uF/450V	/
	Refrigerant oil	ml	2366	1700
Outdoor fan motor	Model		YDK250-6D	YDK250-6D
	Type		AC motor	AC motor
	Brand		Welling	Welling
	Input	W	296	296
	Capacitor	uF	10uF±5% 450V	10uF±5% 450V
	Speed	r/min	740	740
Outdoor coil	Number of rows		1	1
	Tube pitch(a) × row pitch(b)	mm	22×19.05	22×19.05
	Fin spacing	mm	1.6	1.6
	Fin type		Unhydrophilic aluminium	Unhydrophilic aluminium
	Tube outside dia.	mm	Φ8	Φ8
	Tube type		Inner groove copper tube	Inner groove copper tube
	Coil length×height×width	mm	893×880	893×880
	Number of circuits		2	2
Outdoor air flow		m³/h	5800	5700
Outdoor noise level		dB(A)	62.5	56.5
Outdoor unit	Dimension (W×H×D)	mm	990×966×354	990×966×354
	Packing (W×H×D)	mm	1120×1100×435	1120×1100×435
	Net/ Gross weight	kg	74/80	74/80
Refrigerant type/Quantity	Type		R22	R22
Refrigerant type/Quantity	Charged volume	g	1400	1500
Design pressure		MPa	2.6./1.2	2.6./1.2
Connecting wiring	Power wiring	mm²	3×4.0	5×2.5
Connecting wiring	Signal wiring	mm²	1-core cable 1×1.0 1-core shielded wire 1×0.5	1-core cable 1×1.0
Refrigerant piping	Liquid side/ Gas side	mm	Φ9.5/Φ19	Φ9.5/Φ19
	Max. pipe length	m	25	25
	Max. difference in level	m	10	10
Ambient temp(Cooling/Heating)		°C	Cooling:18~43	Cooling:18~43
